Hood Latch Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body and related parts.

Detach the clip (A), then disconnect the security hood switch connector (B).

Fig 1: Identifying Security Hood Switch Connector And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

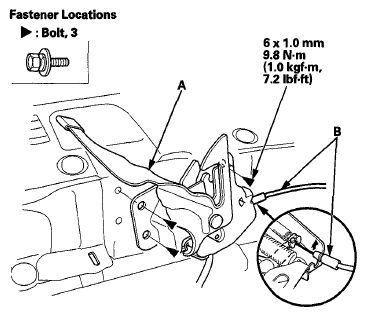

Remove the bolts, then remove the hood latch (A) from the body.

Fig 2: Hood Latch And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hood opener cable (B) from the hood latch. Take care not to kink the cable.
Install the latch in the reverse order of removal, and note these items:
- Apply multipurpose grease to each location on the hood latch indicated by the arrows.
- Make sure the hood opener cable is connected properly and the hood latch switch connector is plugged in properly.
- Adjust the hood latch alignment (see HOOD ADJUSTMENT ).
- Make sure the hood opens properly and locks securely.

Fig 3: Applying Multipurpose Grease To Location On Hood Latch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
