Installation Procedure

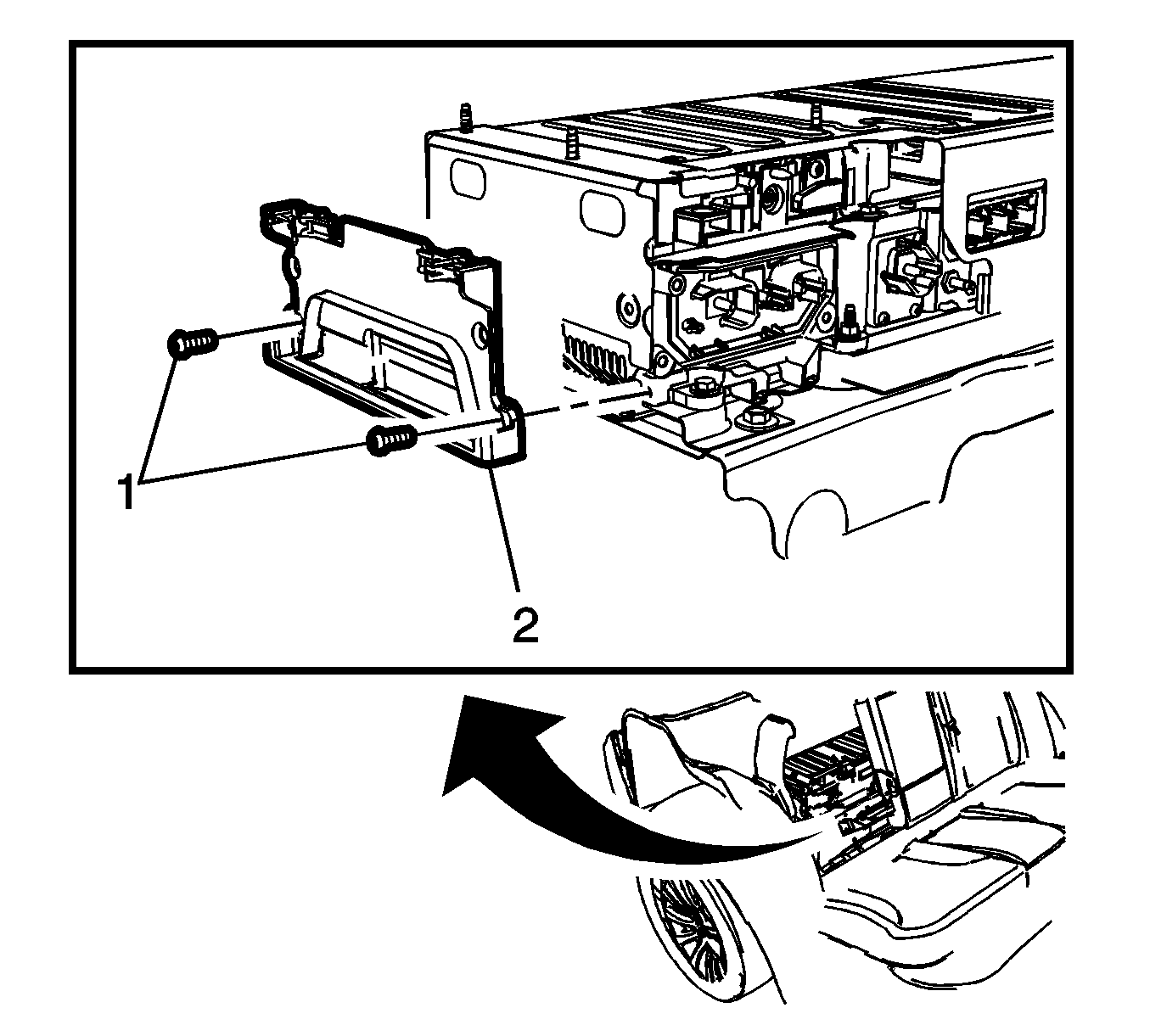

    Fig 1: Generator Control Module Cooling Air Outlet Duct And Tighten Fasteners
    GM2601904Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator control module cooling air outlet duct (2) and tighten the fasteners (1) to 9 N.m (80 lb in).
    2. Fig 2: Drive Motor Battery Cooling Blower Outlet Duct Fastener
    GM2571127Courtesy of GENERAL MOTORS COMPANY
  2. Install the drive motor battery cooling blower outlet duct (2) and tighten the fasteners (1) to 9 N.m (80 lb in).
  3. Enable the hybrid battery. Refer to High Voltage Enabling .
