Headliner Components

GM2455319Courtesy of

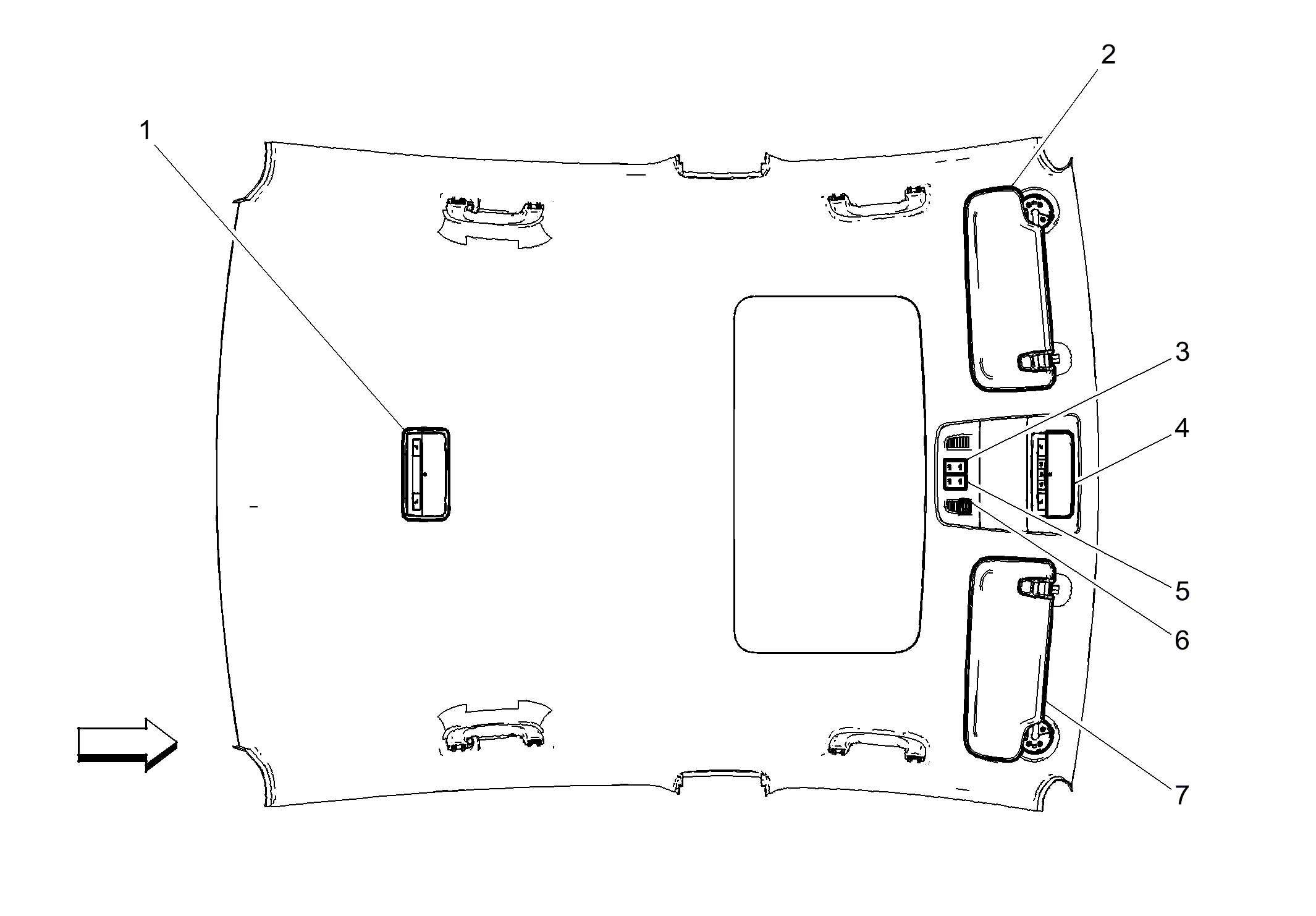

Headliner Components

Component Name Callout
E37R Dome/Reding Lamps- Rear 1
A3R Sunshade- Right 2
S88 Sunroof Tilt Switch (CF5) 3
E37E Dome/Reding Lamps- Front Overhead Console 4
S72 Sunroof Switch (CF5) 5
B24 Cellular Phone Microphone 6
A3L Sunshade- Left 7
