Rear Seat Buckle Side Belt Replacement

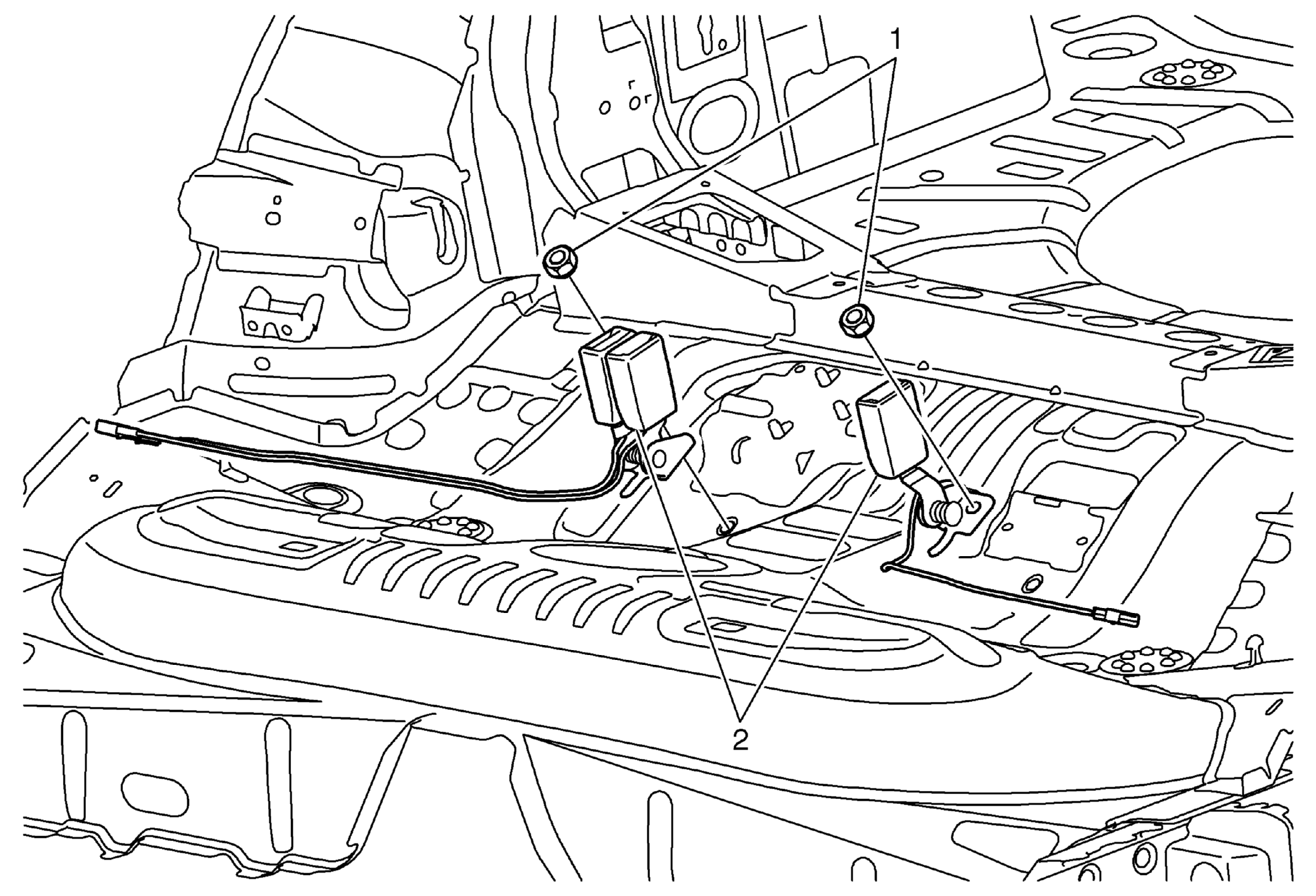

Fig 1: Rear Seat Center Shoulder Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Rear Seat Belt Buckle Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m(33 lb ft)
2	Rear Seat Belt Buckle
