Charge Air Bypass Valve Vacuum Tank Replacement
Charge Air Bypass Valve Vacuum Tank Replacement

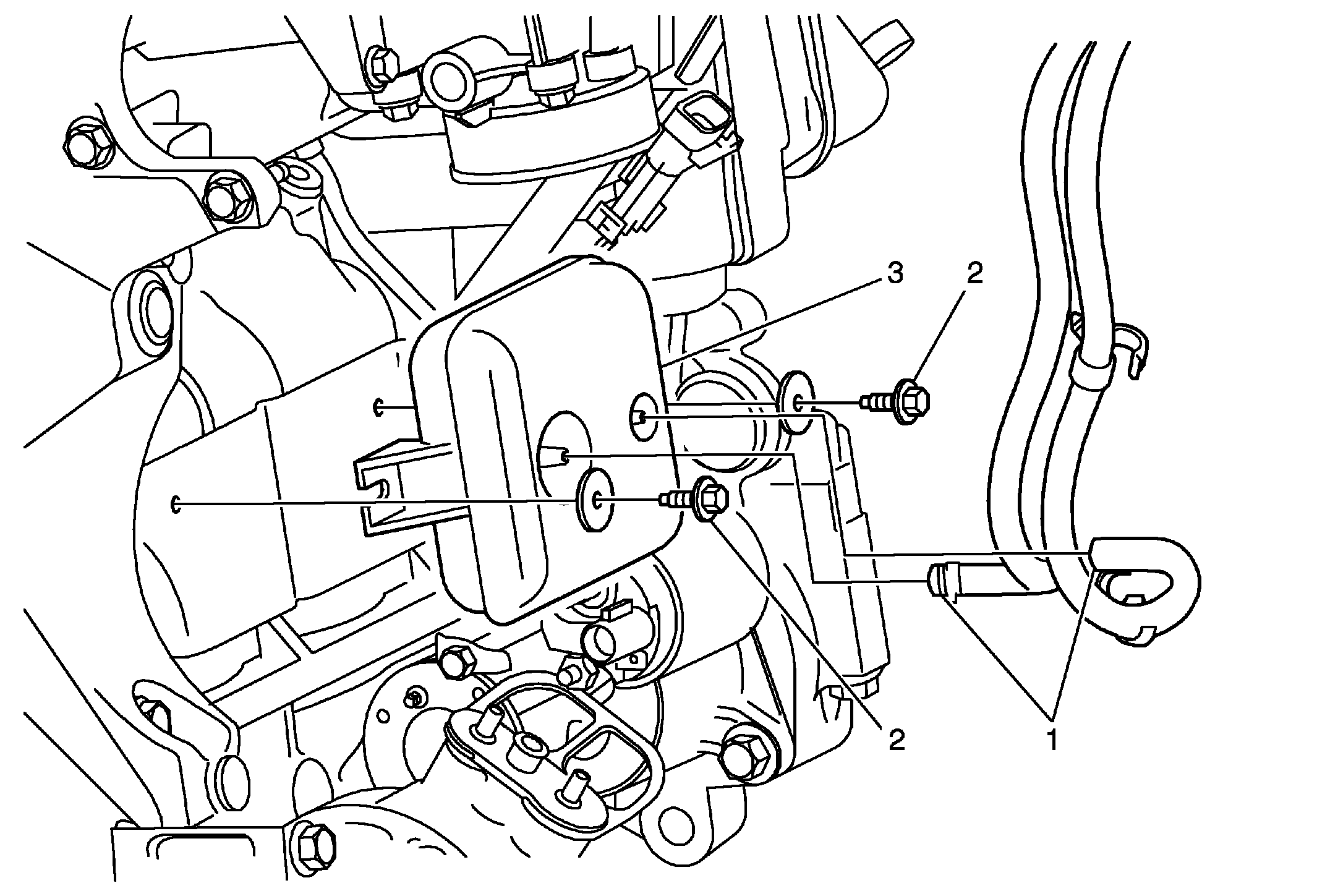

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Vacuum Pipe (Qty: 2) Procedure Release the vacuum hose from charger air bypass valve vacuum tank. |
| 2 | Charge Air Bypass Valve Vacuum Tank Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Charge Air Bypass Valve Vacuum Tank |
