Fuel Feed Pipe Replacement (LTD)

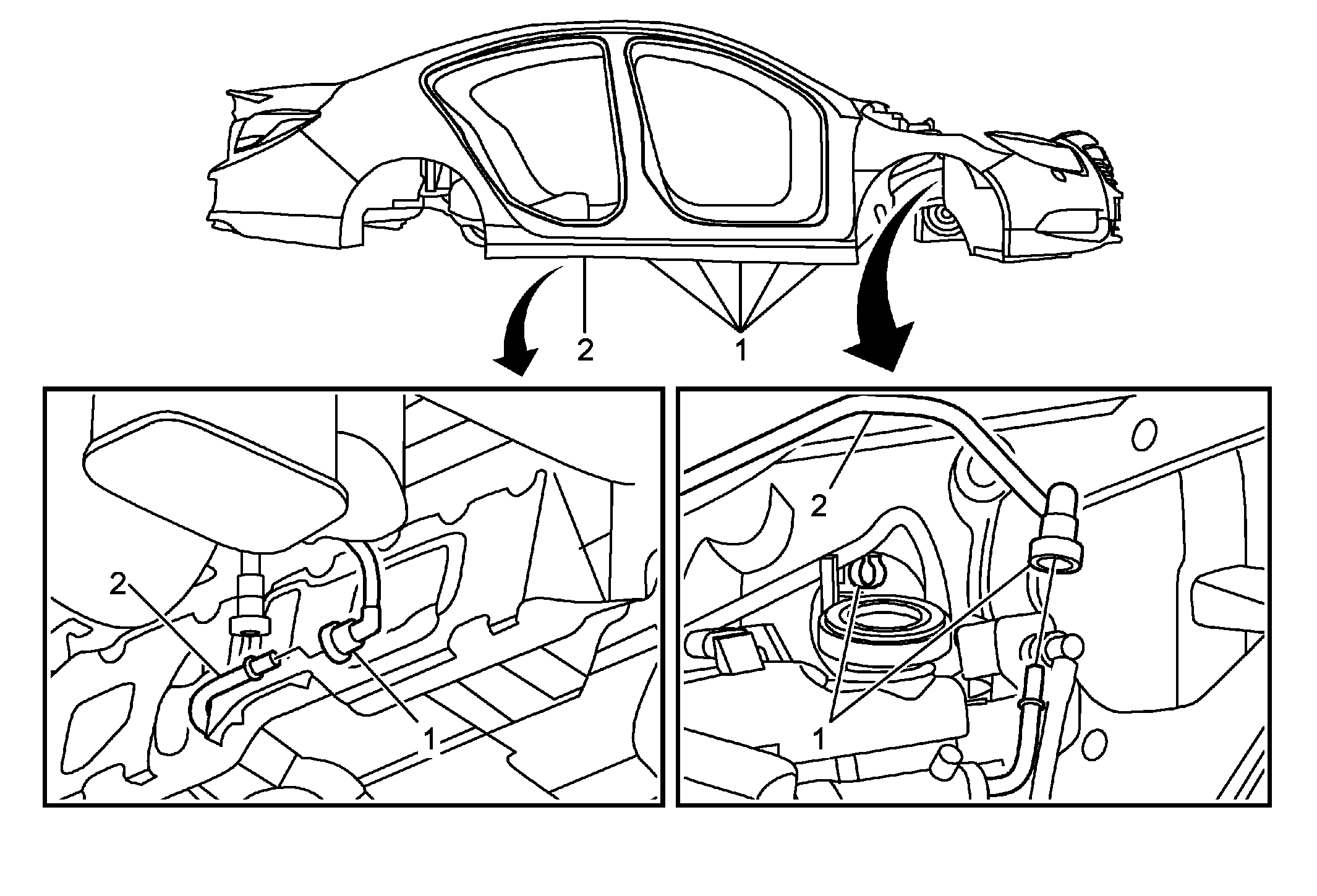

Fig 1: Fuel Feed Pipe (LTD)

Courtesy of GENERAL MOTORS COMPANY

Fuel Feed Pipe Replacement (LTD)

Callout	Component Name
1	Fuel Feed Pipe Retainer (Qty: 8) Refer to Plastic Collar Quick Connect Fitting Service .
2	Fuel Feed Pipe
