Intake Air Pressure and Temperature Sensor Replacement
Intake Air Pressure and Temperature Sensor Replacement

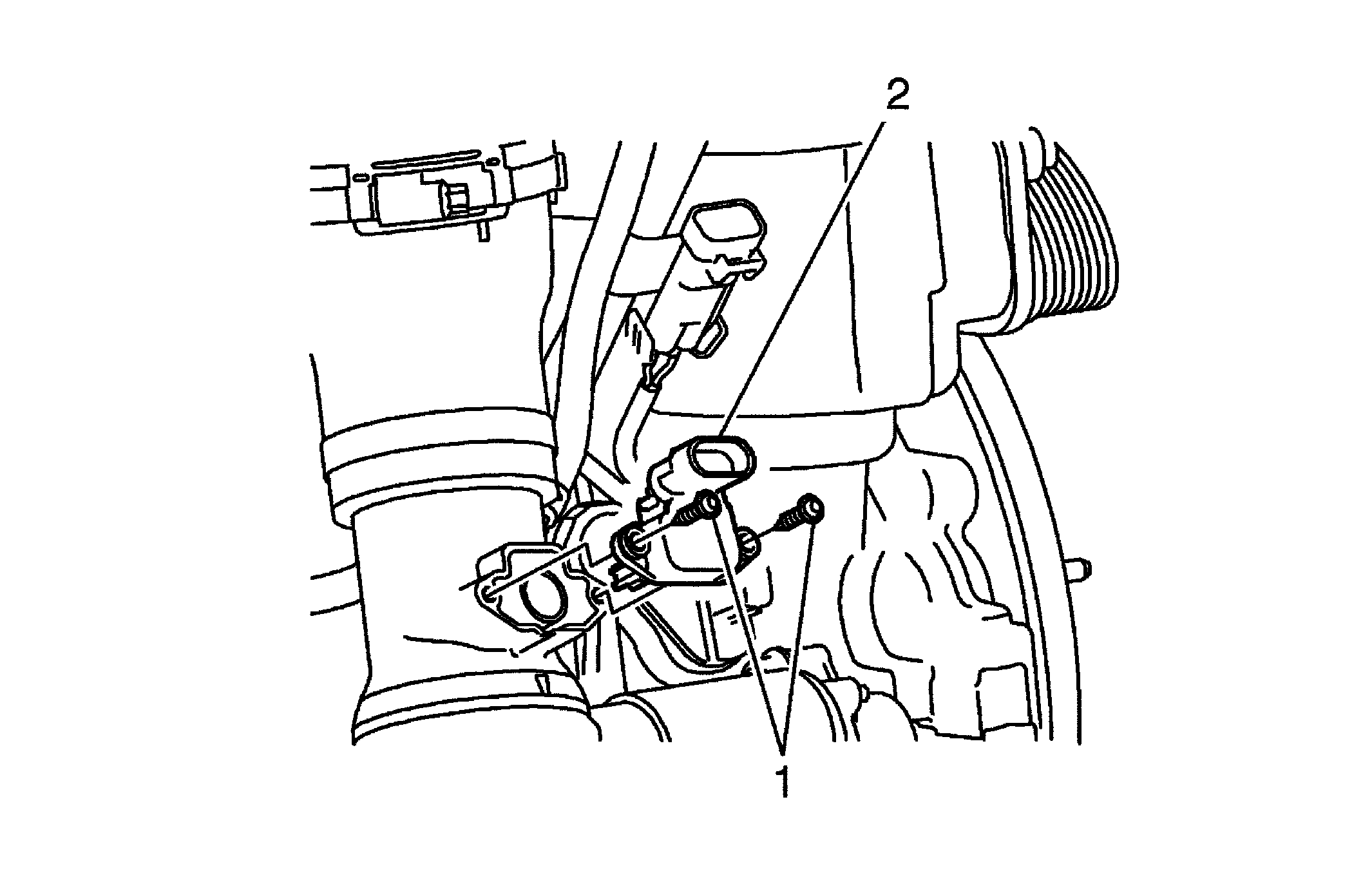

| Callout | Component Name |
|---|---|
| 1 | Intake Air Pressure and Temperature Sensor Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 7 N.m (62 lb in) |
| 2 | Intake Air Pressure and Temperature Sensor |
