Section 363 (Object Detection System - Park Assist System)
›
Wiring Schematics
›
Object Detection Wiring Schematics
›
Rear Object Detection (UD7)
Rear Object Detection (UD7)
WARNING:
This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

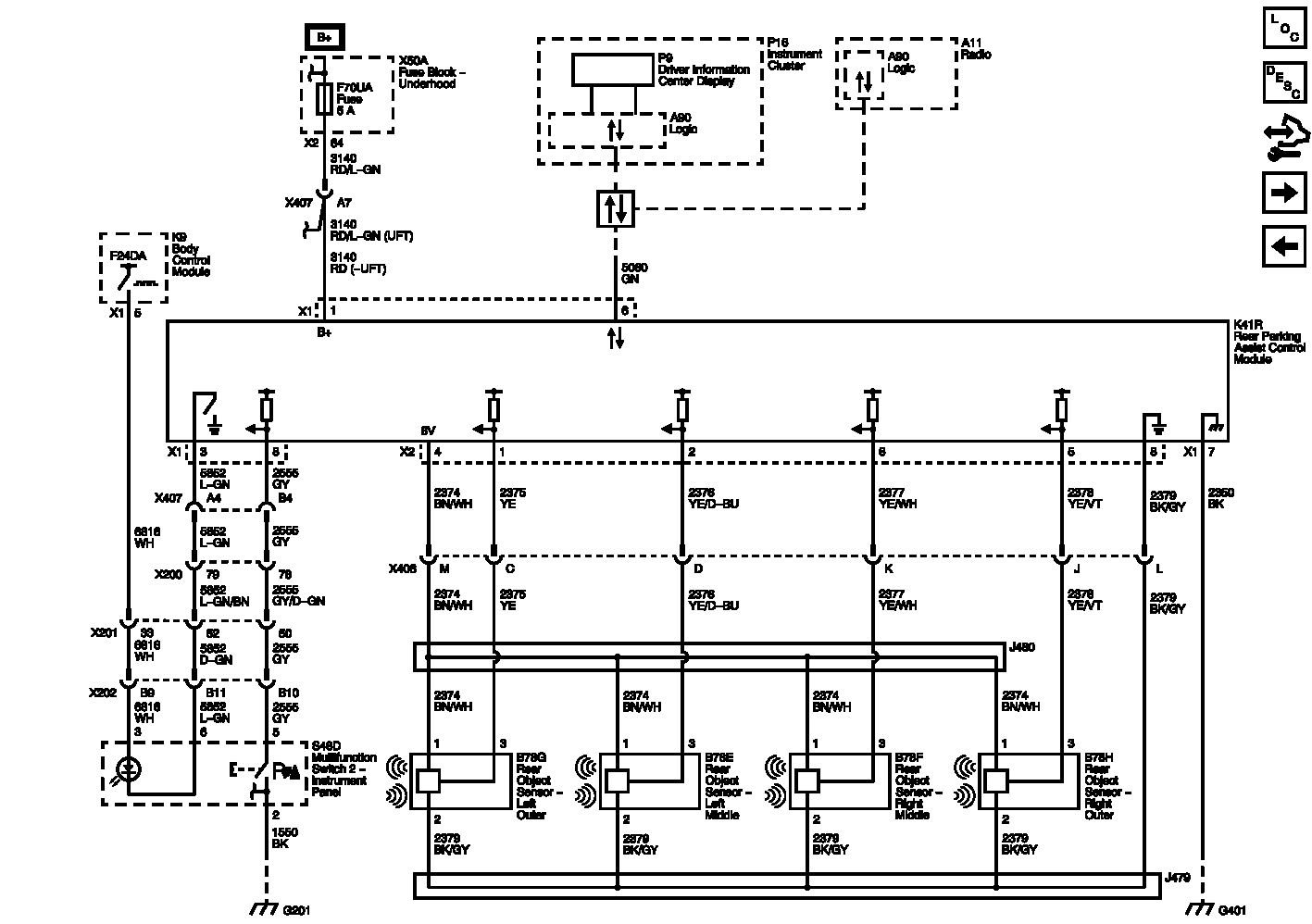

Fig 1: Rear Object Detection (UD7) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
