Air Cleaner Assembly Replacement

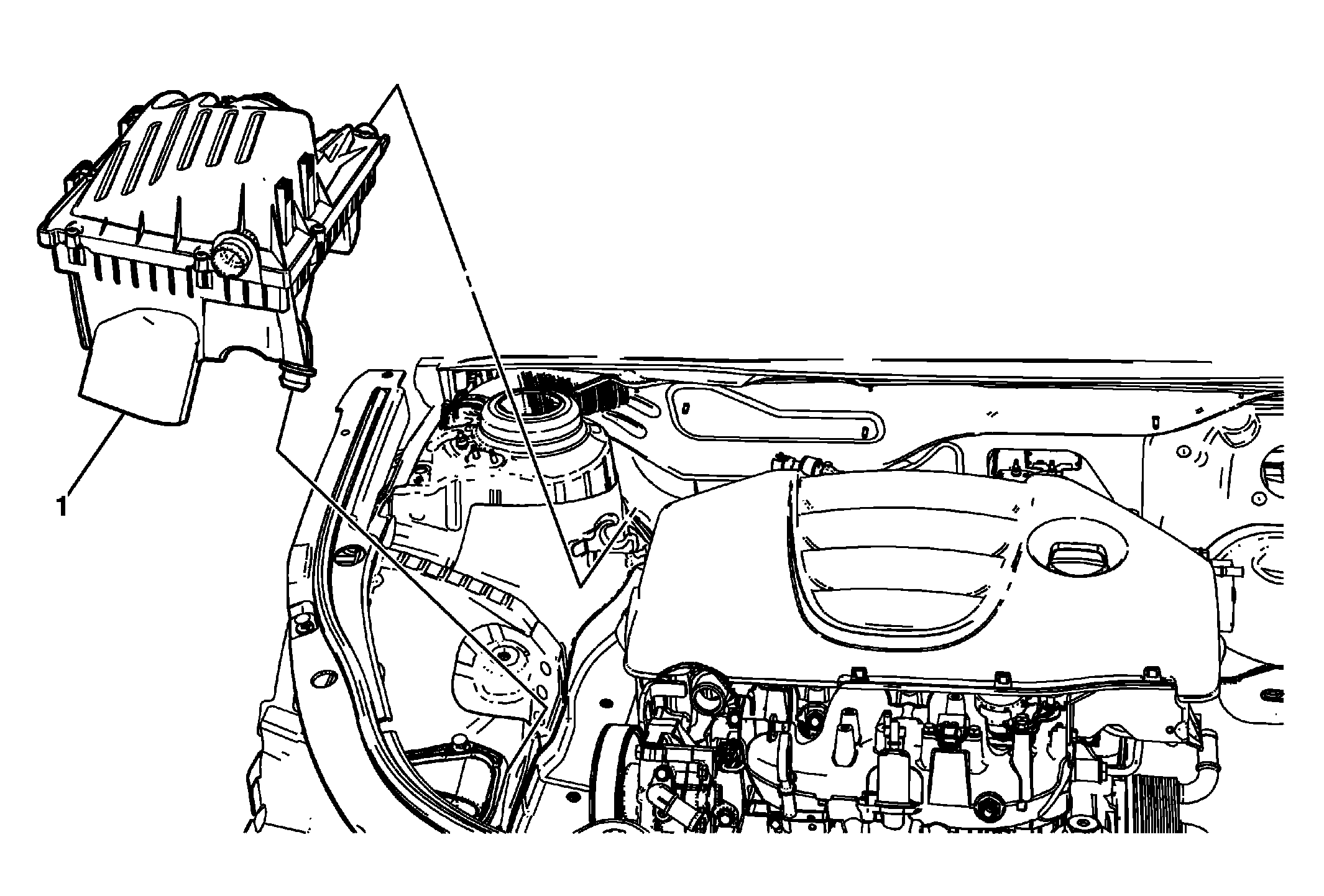

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Assembly Procedure Lift upwards to dislodge the rubber grommet. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly

Procedure
