Air Cleaner Element Replacement

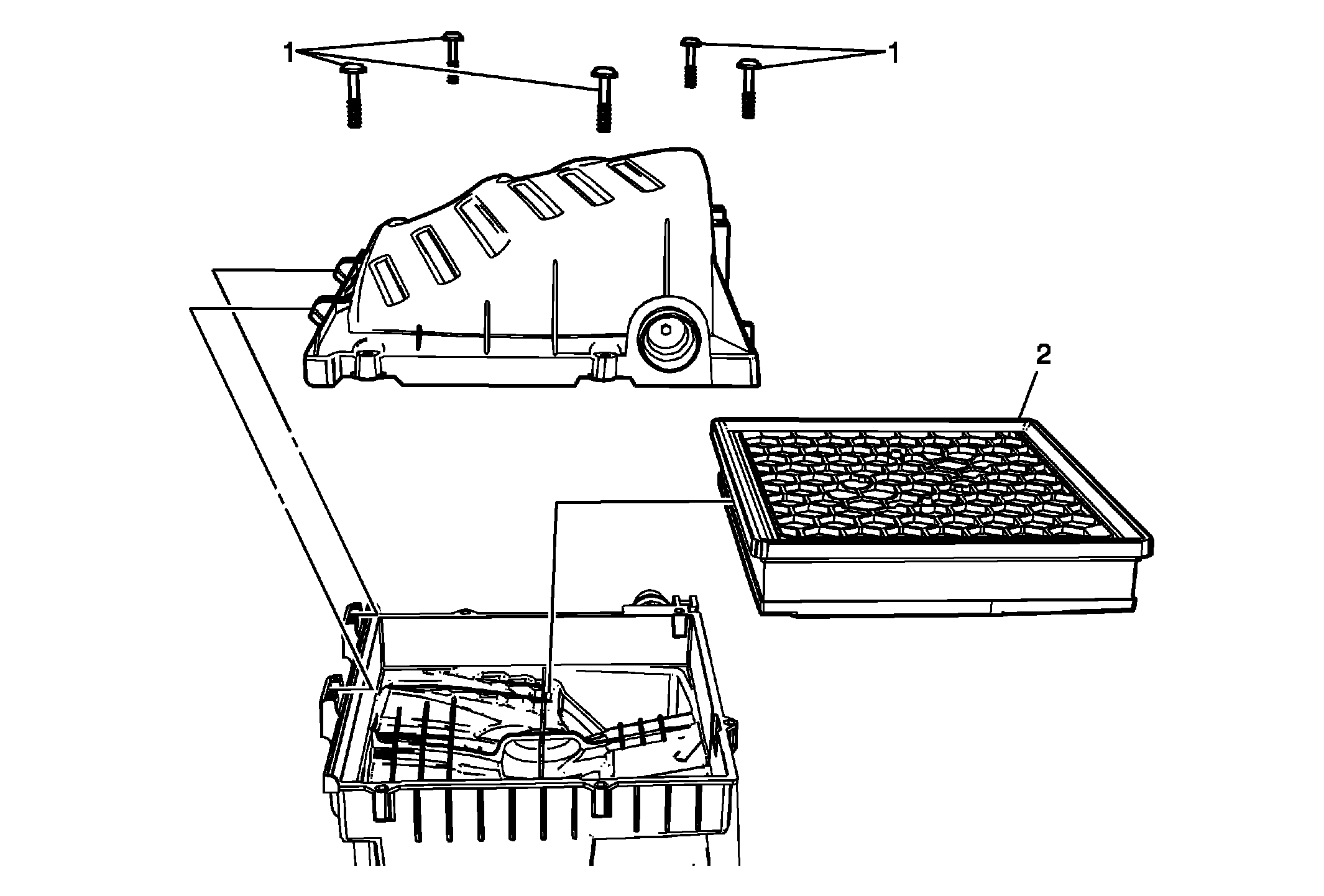

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Element Replacement

Callout	Component Name
1	Air Cleaner Assembly Screws (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Air Cleaner Element
