Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

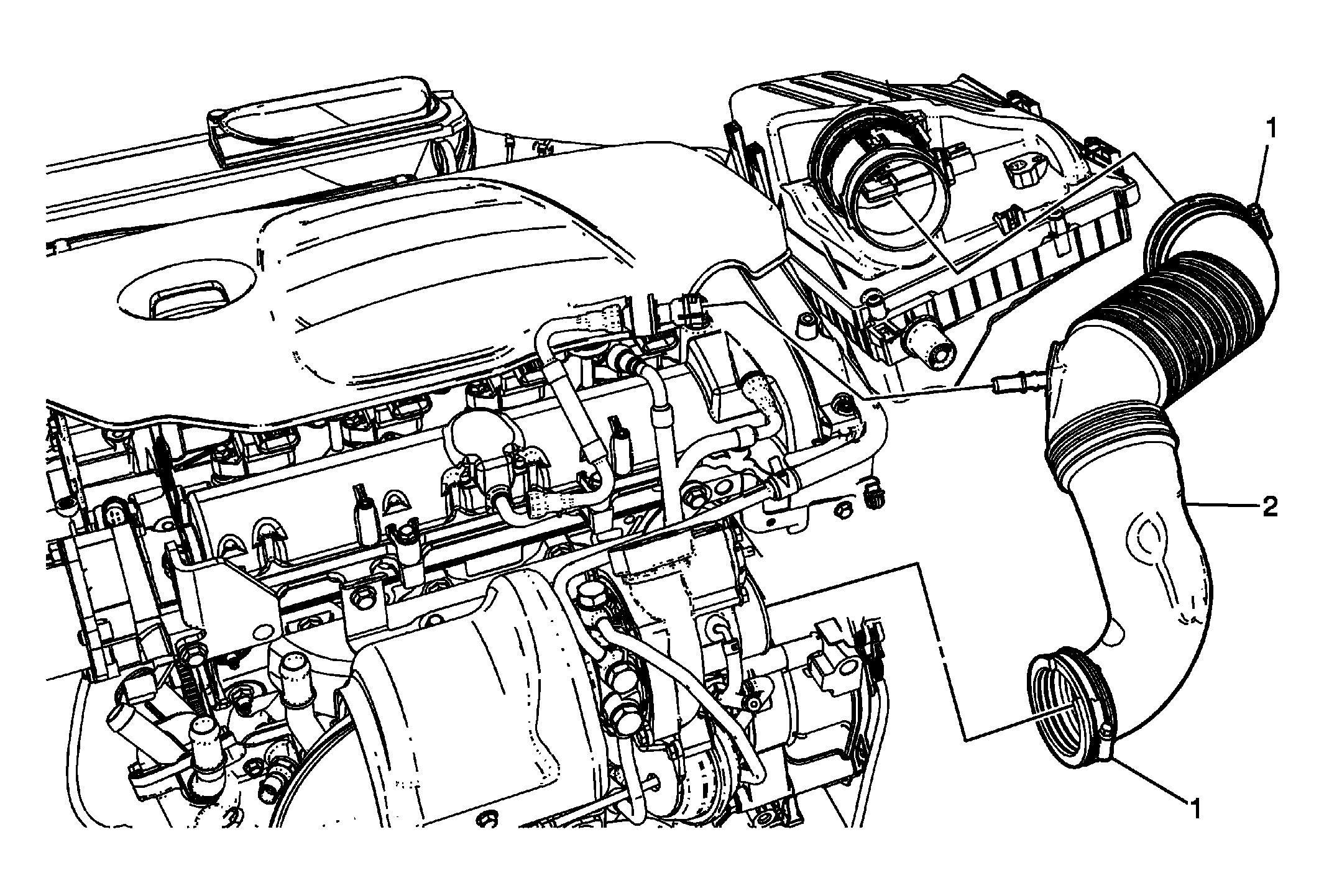

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the PCV connector. Refer to Plastic Collar Quick Connect Fitting Service . |
|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Outlet Duct |
