Camshaft Position Sensor Replacement - Intake

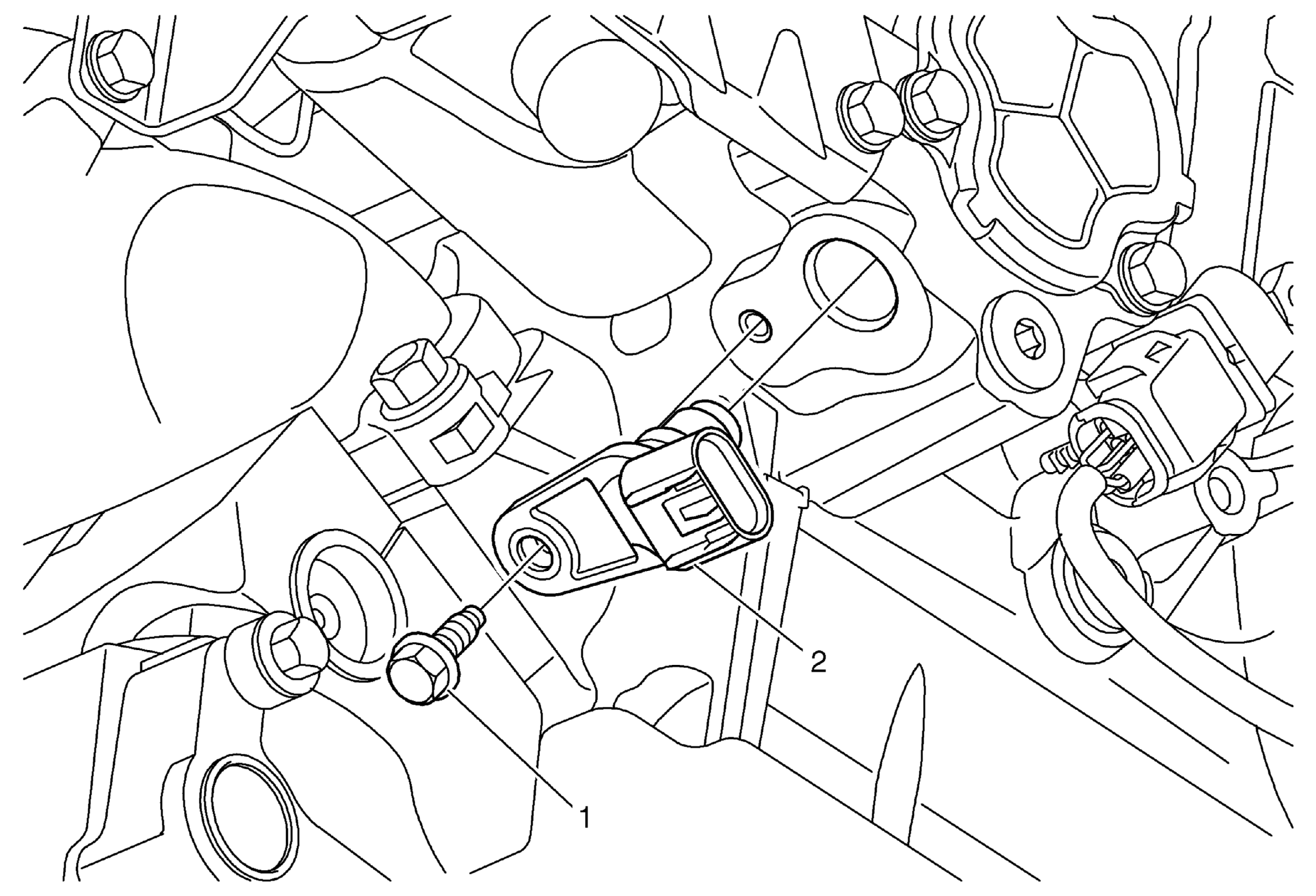

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Replacement - Intake

Callout	Component Name
Preliminary Procedure  Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connector. Tighten  10 N.m (89 lb in)
2	Camshaft Position Sensor
