Charge Air Cooler Inlet Pipe Replacement
Charge Air Cooler Inlet Pipe Replacement

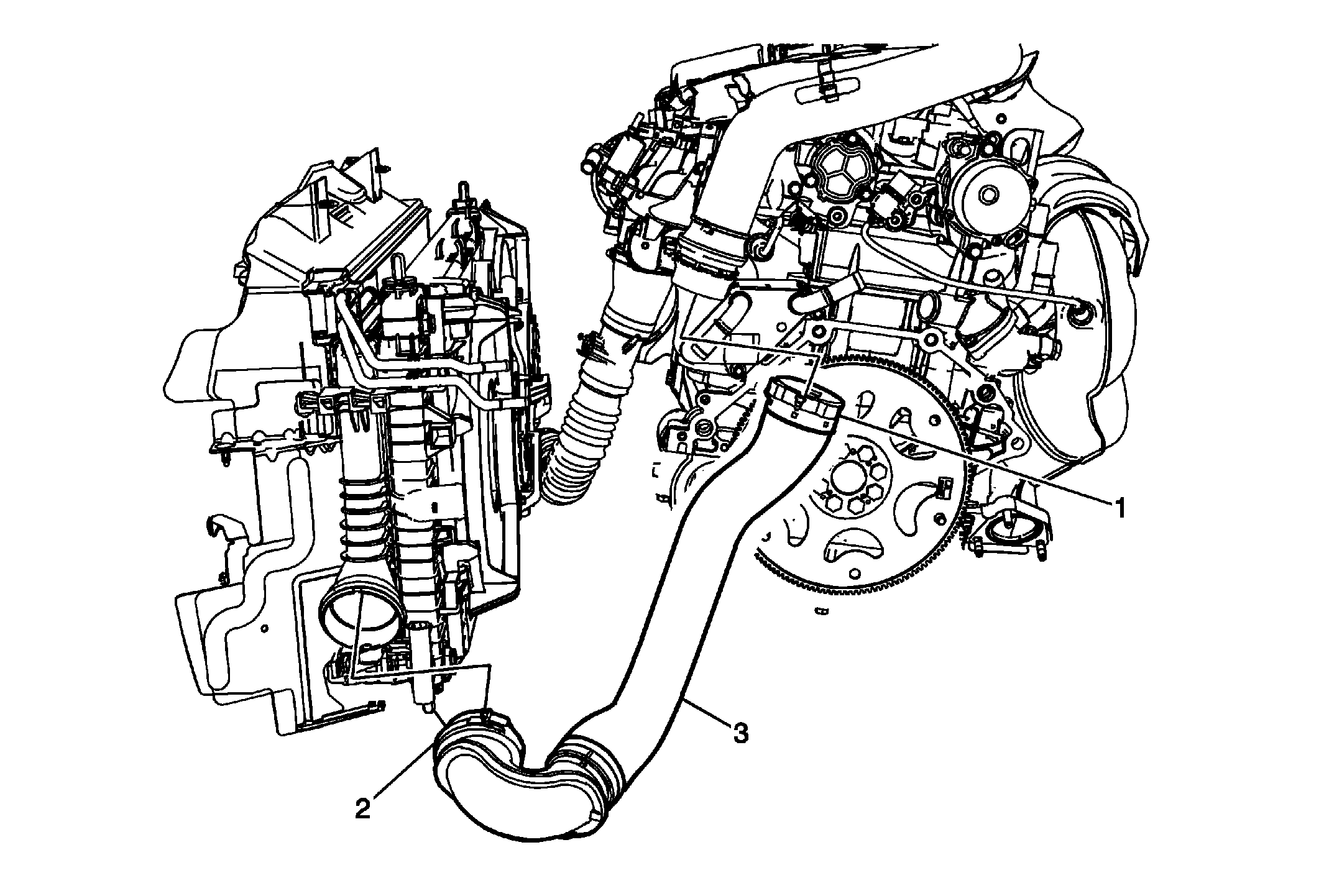

| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Inlet Pipe Retaining Clip |
| 2 | Charge Air Cooler Inlet Pipe Clamp
CAUTION:
Refer to Fastener Caution . Tighten 2.7 N.m (24 lb in) |
| 3 | Charge Air Cooler Inlet Pipe |
