Ignition Coil Replacement
Ignition Coil Replacement

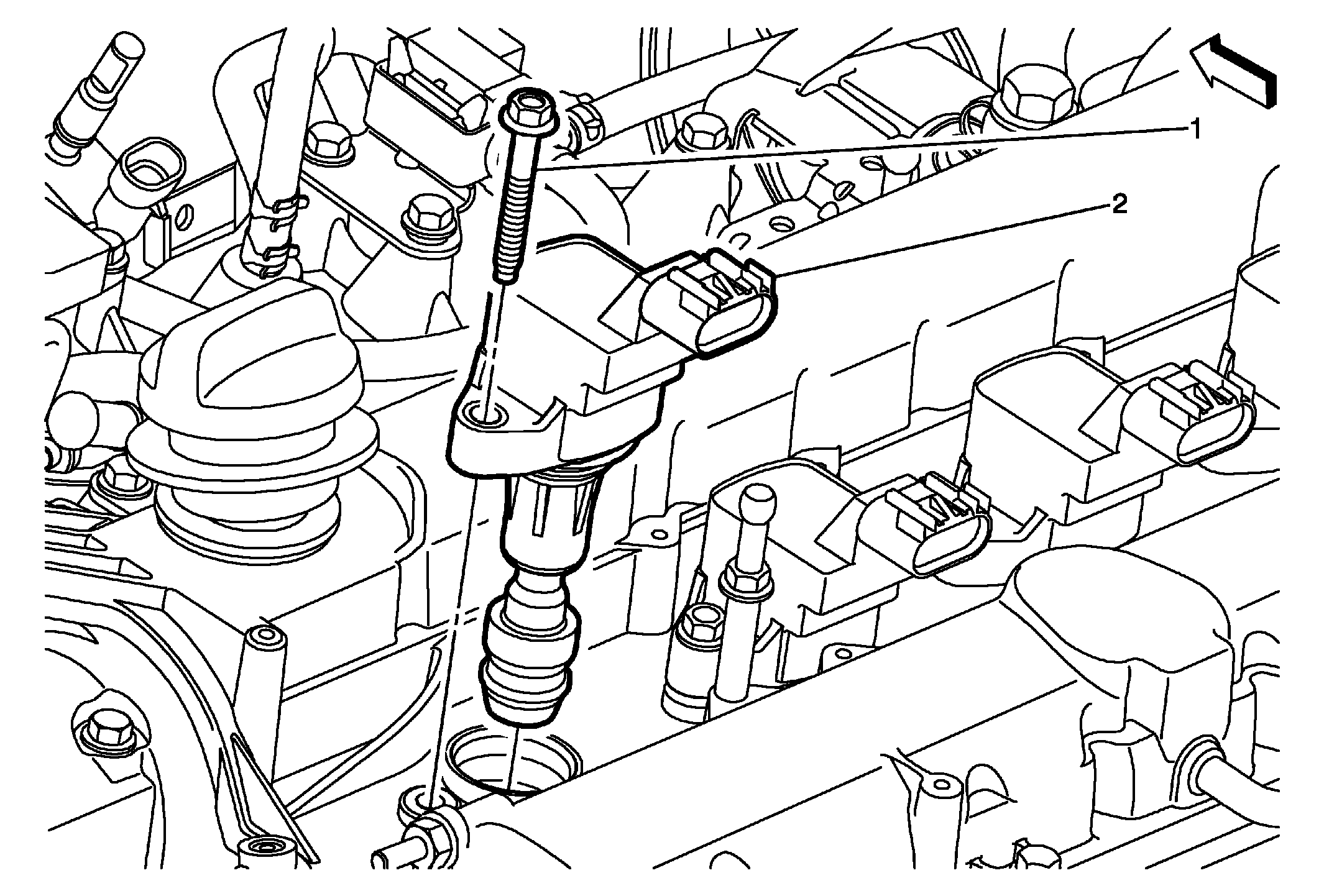

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Ignition Coil Fastener
CAUTION:
Refer to Fastener Caution Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in) |
| 2 | Ignition Coil |
