Knock Sensor Replacement (Left Side)

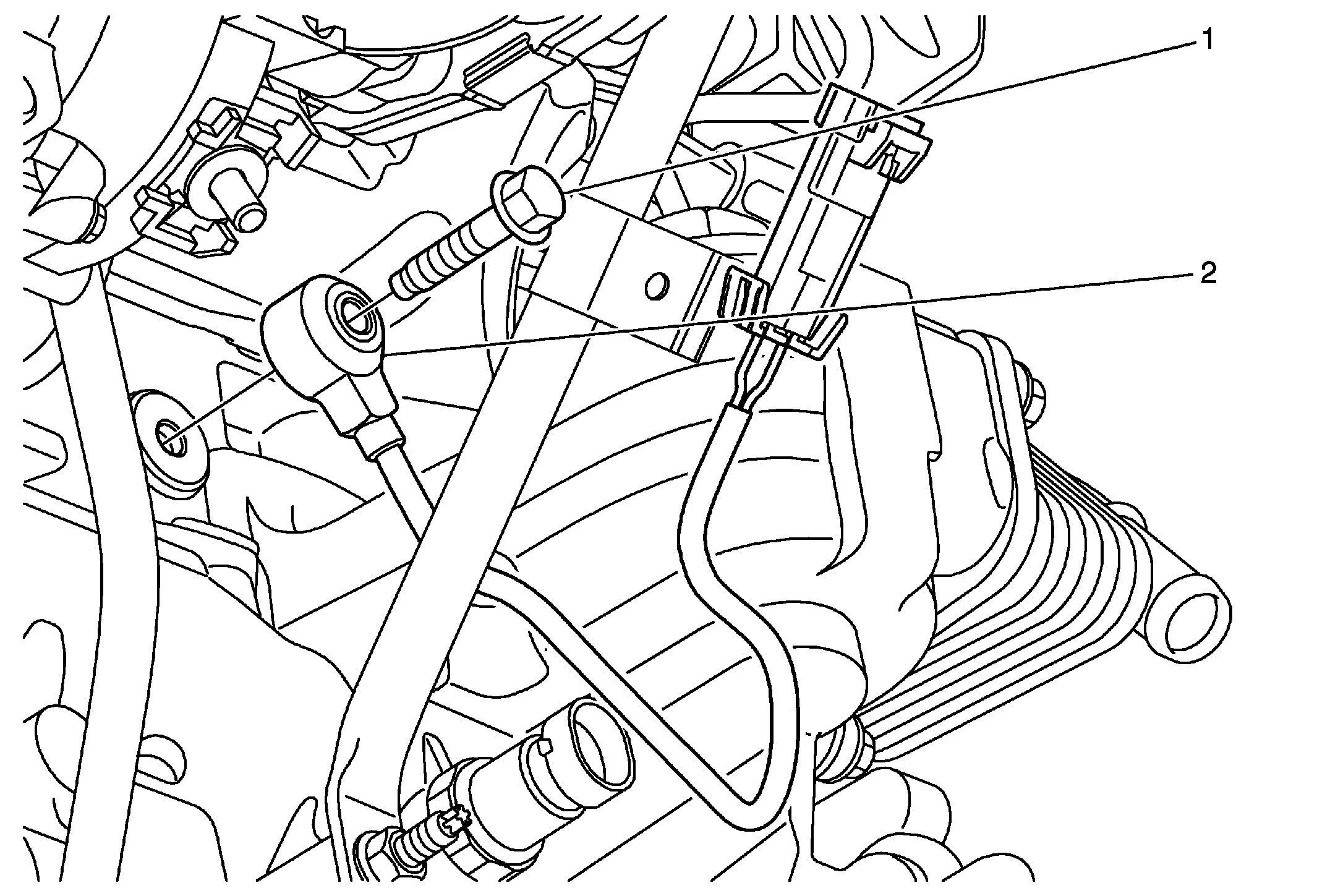

Fig 1: Knock Sensor (Left Side)

Courtesy of GENERAL MOTORS COMPANY

Knock Sensor Replacement (Left Side)

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  25Y (18 lb in)
2	Knock Sensor Procedure  Disconnect the electrial connector.
