Turbocharger Control Solenoid Valve Replacement

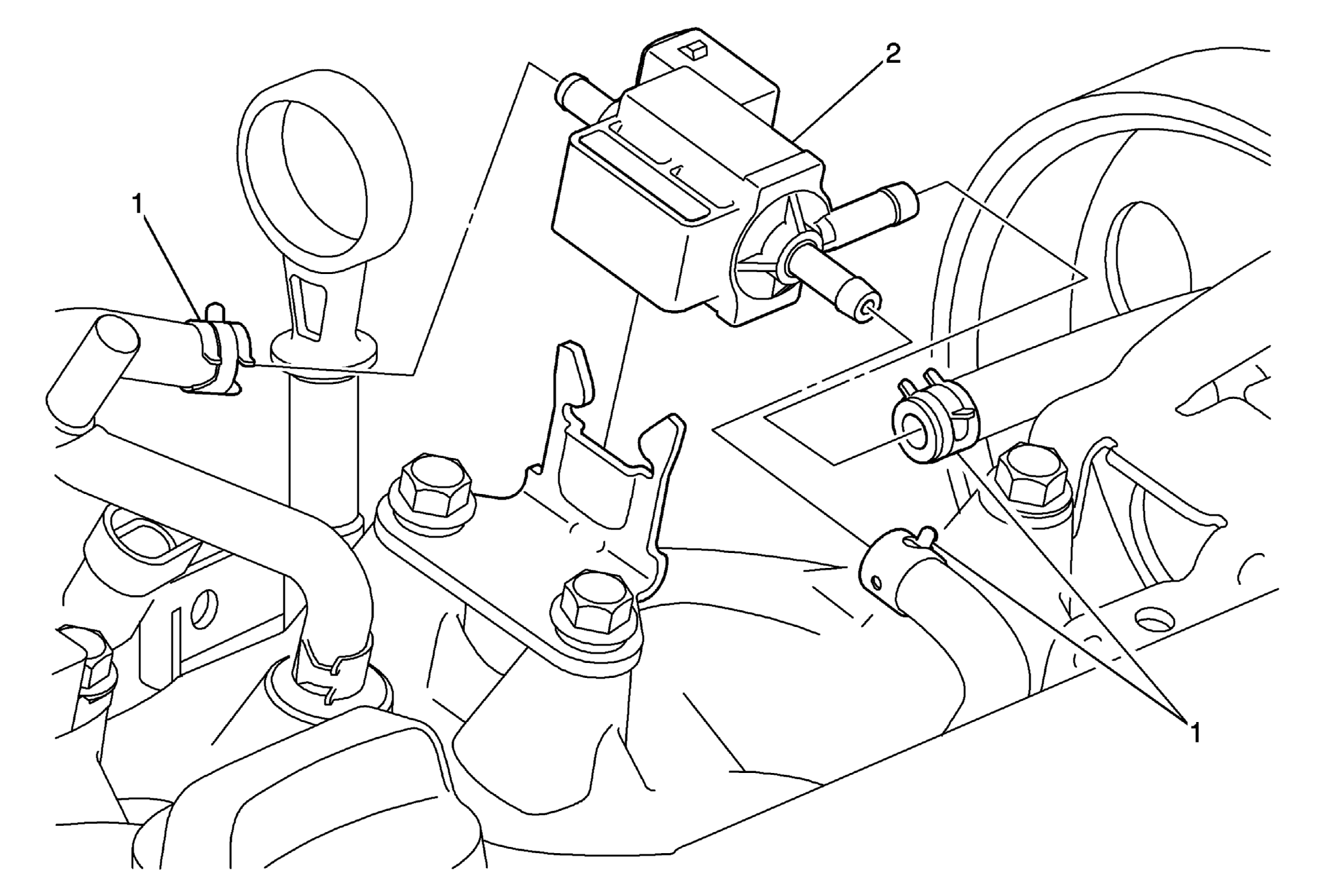

Fig 1: Turbocharger Control Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Turbocharger Control Solenoid Valve Replacement Clamp (Qty: 3) Procedure Remove the vacuum hose. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Turbocharger Control Solenoid Valve Replacement Clamp (Qty: 3)

Procedure
