Left HVAC Components

Left HVAC Components

Component Name Callout
M4 Air Inlet Door Actuator 1
B7H Air Temperature Sensor - Duct Left Upper 2
M37B Mode Door Actuator - Auxiliary 3
B7D Air Temperature Sensor - Duct Left Lower 4
M6B Air Temperature Door Actuator - Auxiliary 5

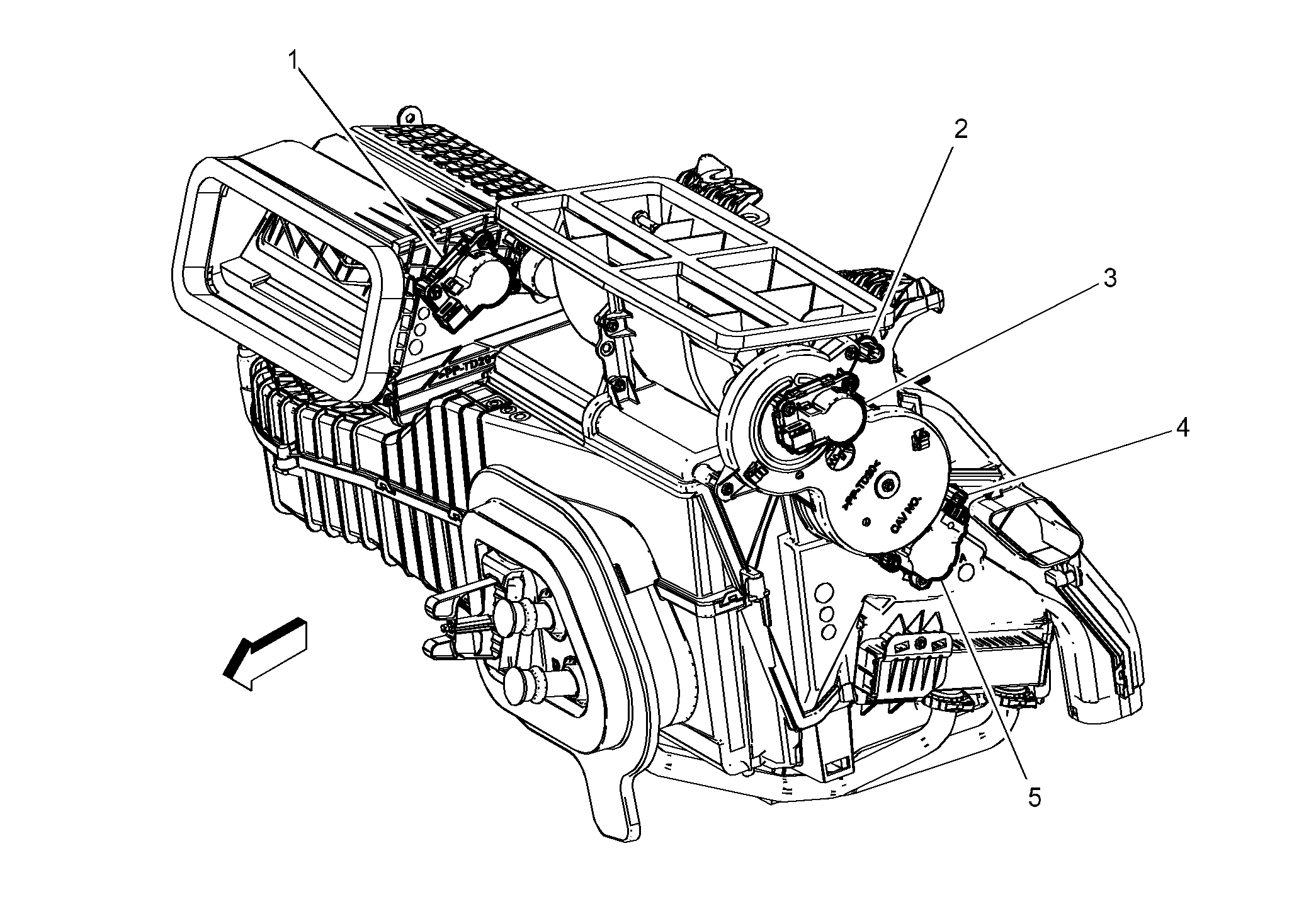

Fig 1: Left HVAC Components
GM2714955Courtesy of GENERAL MOTORS COMPANY
