Right HVAC Components

Component Name	Callout
B7H Air Temperature Sensor - Duct Left Upper	1
M4 Air Inlet Door Actuator	2
M8 Blower Motor	3
K8 Blower Motor Control Module	4
B39 A/C Evaporator Temperature Sensor	5
M6 Air Temperature Door Actuator	6
B7J Air Temperature Sensor - Duct Right Upper	7

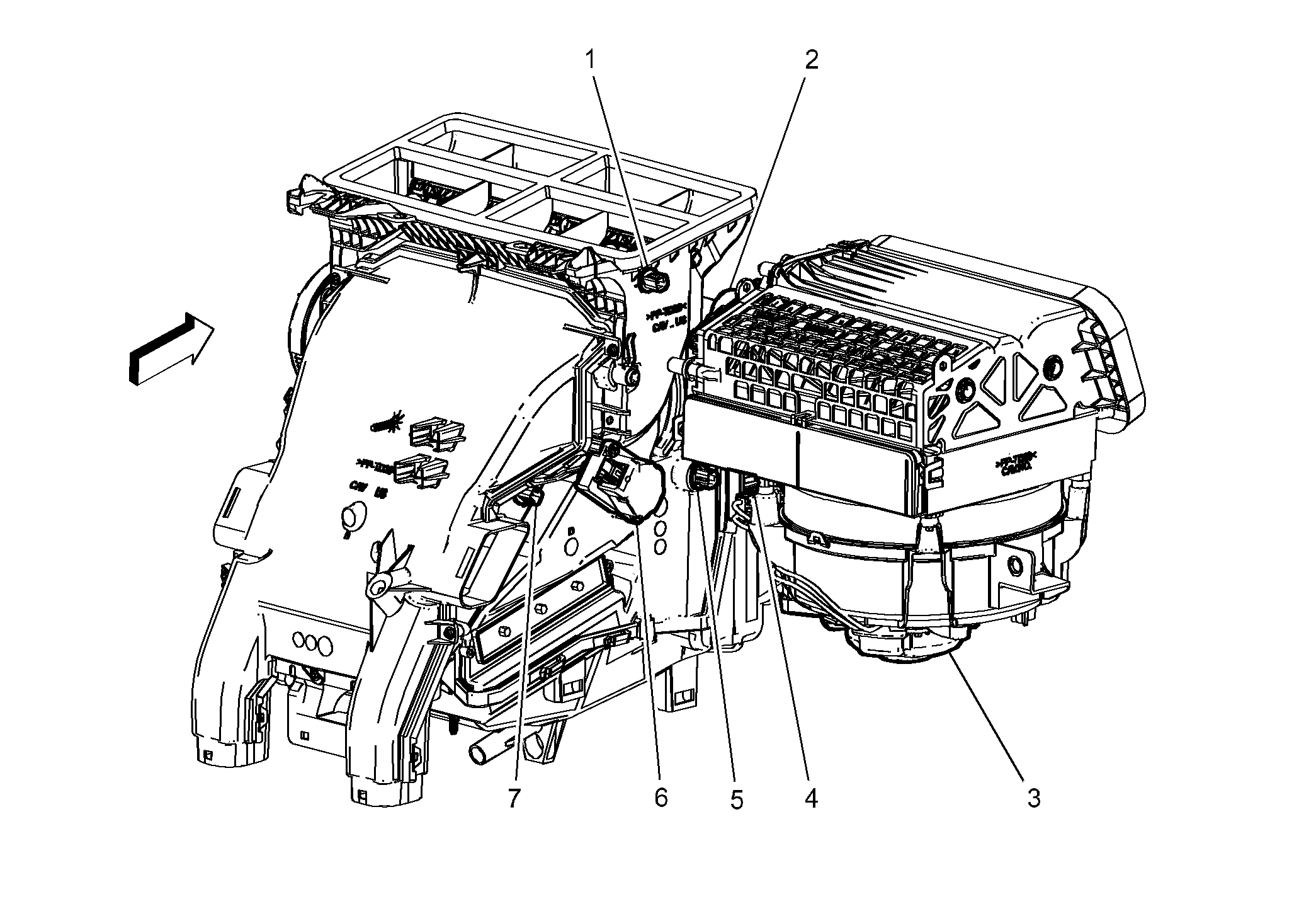

Fig 1: Right HVAC Components

Courtesy of GENERAL MOTORS COMPANY
