Installation Procedure

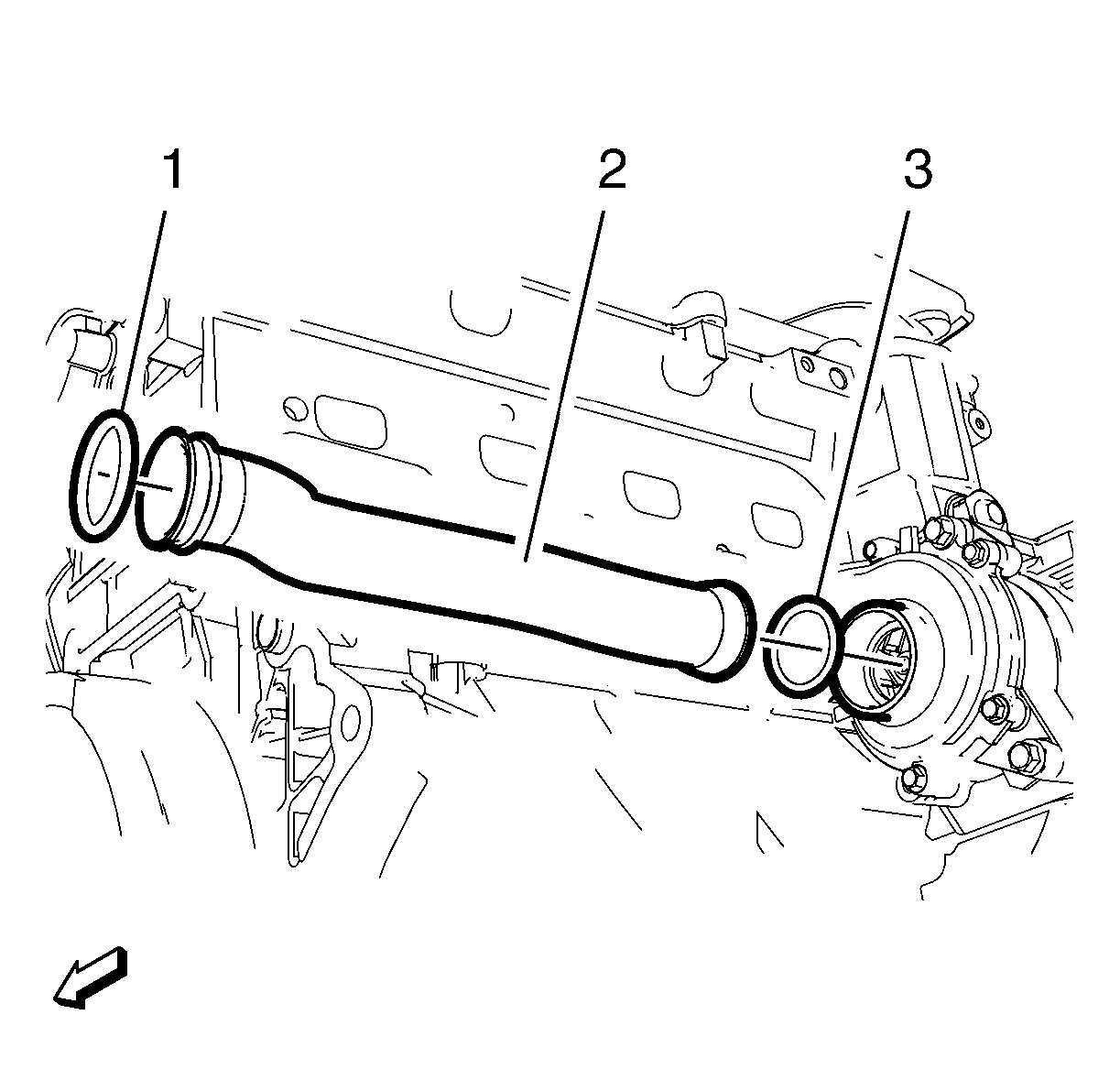

    Fig 1: Radiator Outlet & Seal Rings
    GM2557095Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator outlet pipe (2) with the NEW seal rings (1, 3).
  2. Install the engine coolant thermostat housing. Refer to Engine Coolant Thermostat Housing Replacement .
