Air Cleaner Inlet Duct and Resonator Replacement
Air Cleaner Inlet Duct and Resonator Replacement

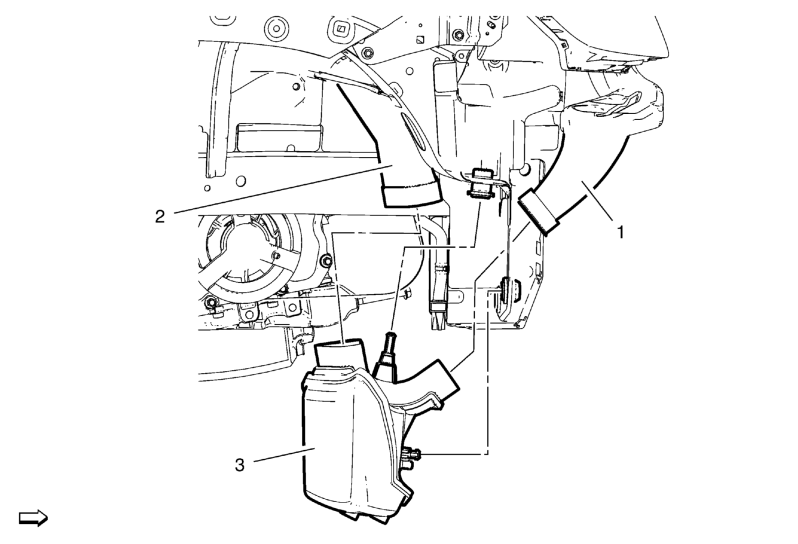

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Intake Air Duct |
| 2 | Air Cleaner Adapter |
| 3 | Air Cleaner Inlet Duct And Resonator |
