Crankshaft Position Sensor Replacement
Crankshaft Position Sensor Replacement

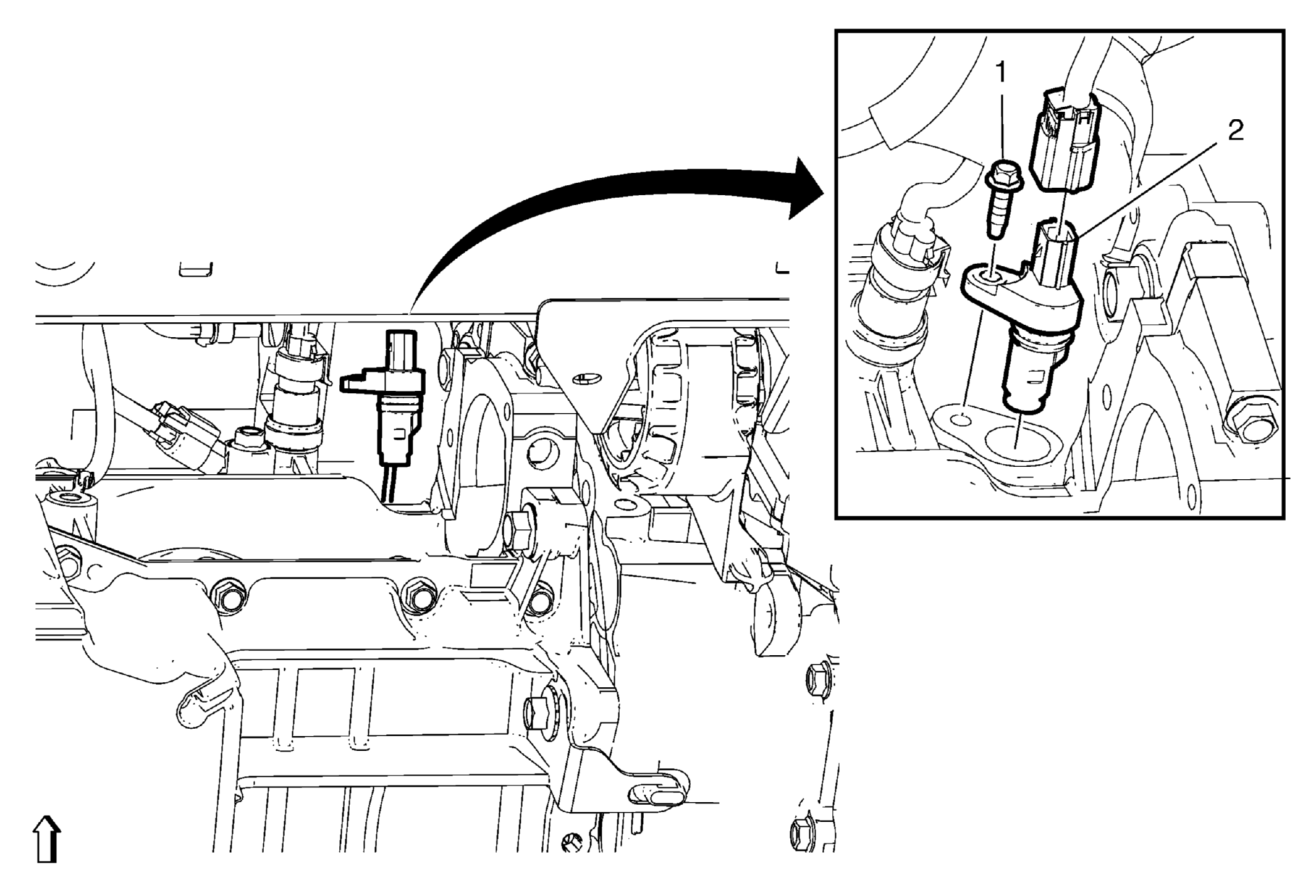

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the starter. Refer to Starter Replacement . |
|
| 1 | Crankshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Crankshaft Position Sensor Procedure Disconnect the electrical connector. |
