Fuel Injector Replacement

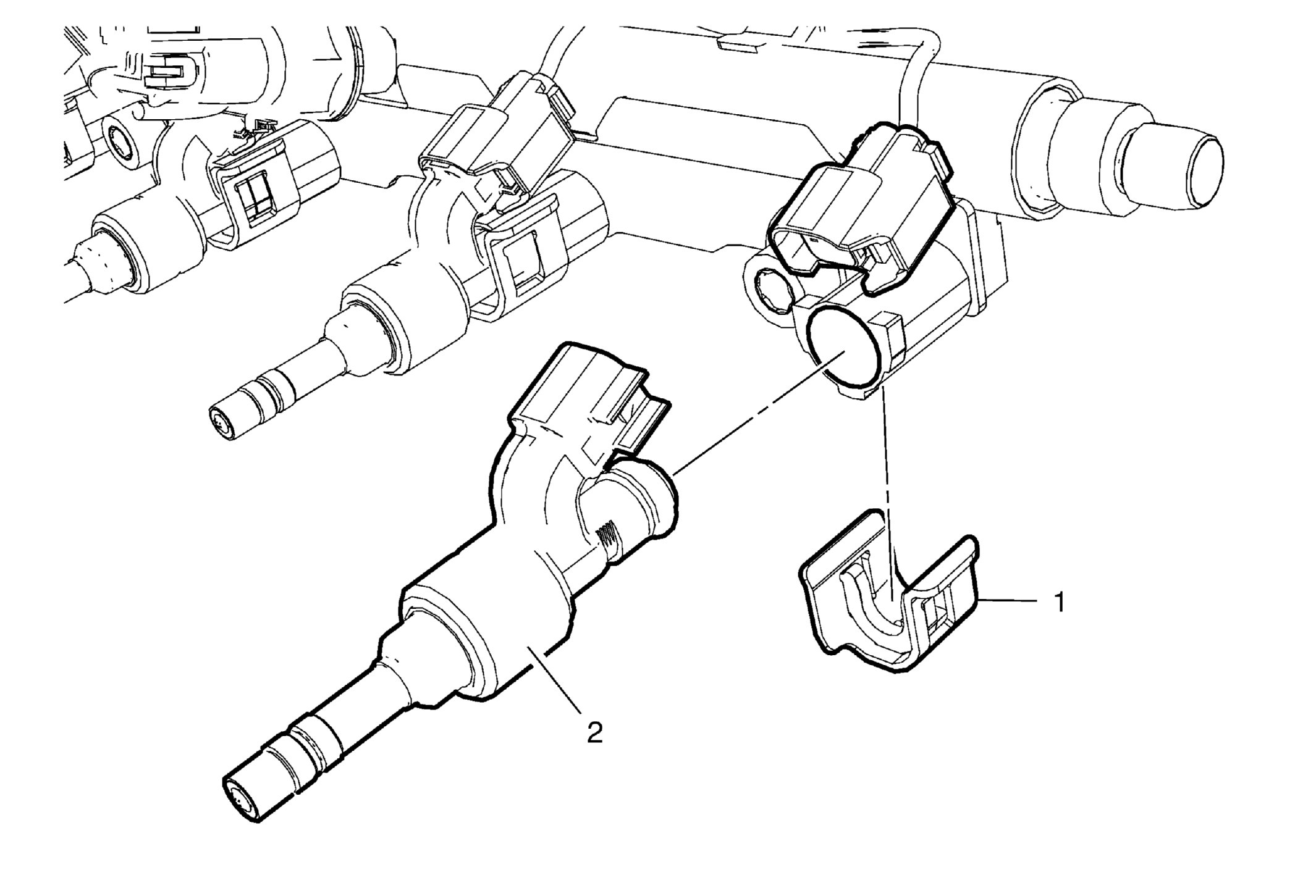

Fig 1: Fuel Injector & Clamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1	Fuel Injector Clamp
2	Fuel Injector
