Installation Procedure

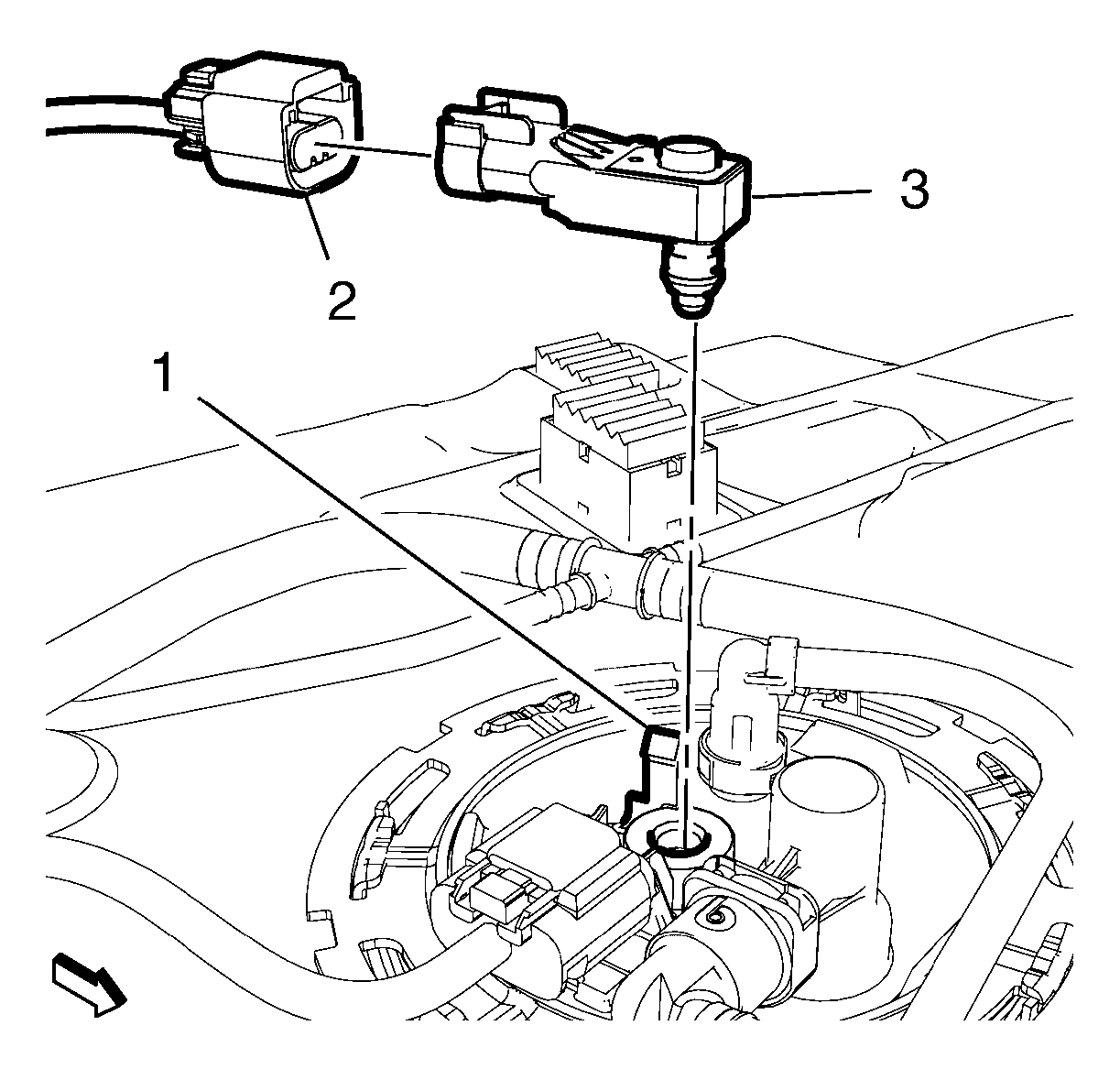

    Fig 1: Fuel Tank Pressure Sensor, Wiring Harness Plug & Pump Module Clip
    GM2595045Courtesy of GENERAL MOTORS COMPANY
  1. Clip the fuel tank pressure sensor (3) to the fuel tank pump module clip (1).
  2. Connect the fuel tank pressure sensor wiring harness plug (2).
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
