Removal Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

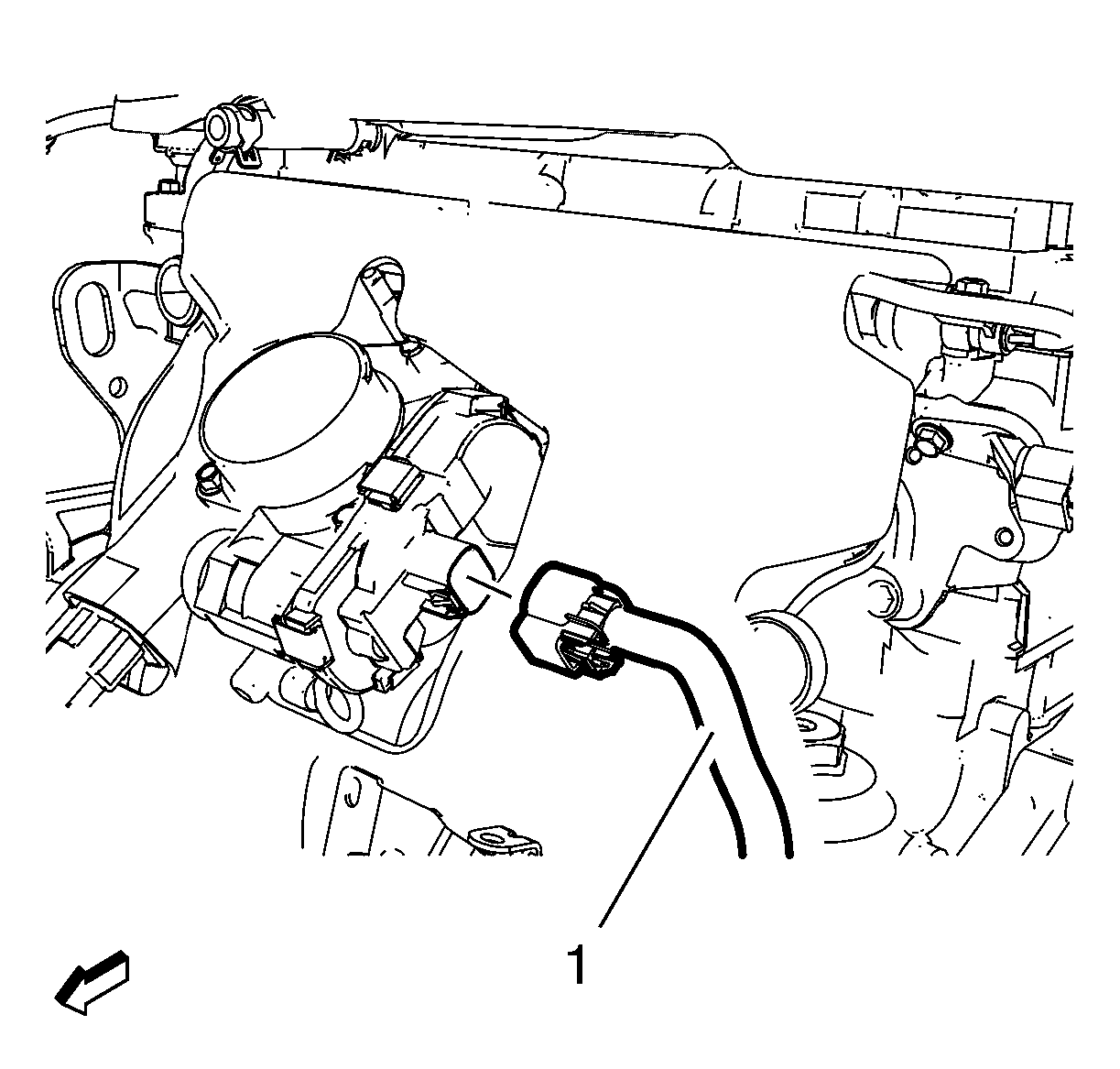

    2. Fig 1: Throttle Body Wiring Harness Plug
    GM2557057Courtesy of GENERAL MOTORS COMPANY
  2. Remove the throttle body wiring harness plug (1).
    3. Fig 2: Throttle Body, Bolts & Gasket
    GM2557056Courtesy of GENERAL MOTORS COMPANY
  3. Remove 4 throttle body bolts (3).
  4. Remove the throttle body (2).
  5. Remove and DISCARD the gasket (1).
