Body Control System Wiring Schematics
›
Subsystem References (4 of 4)
Subsystem References (4 of 4)

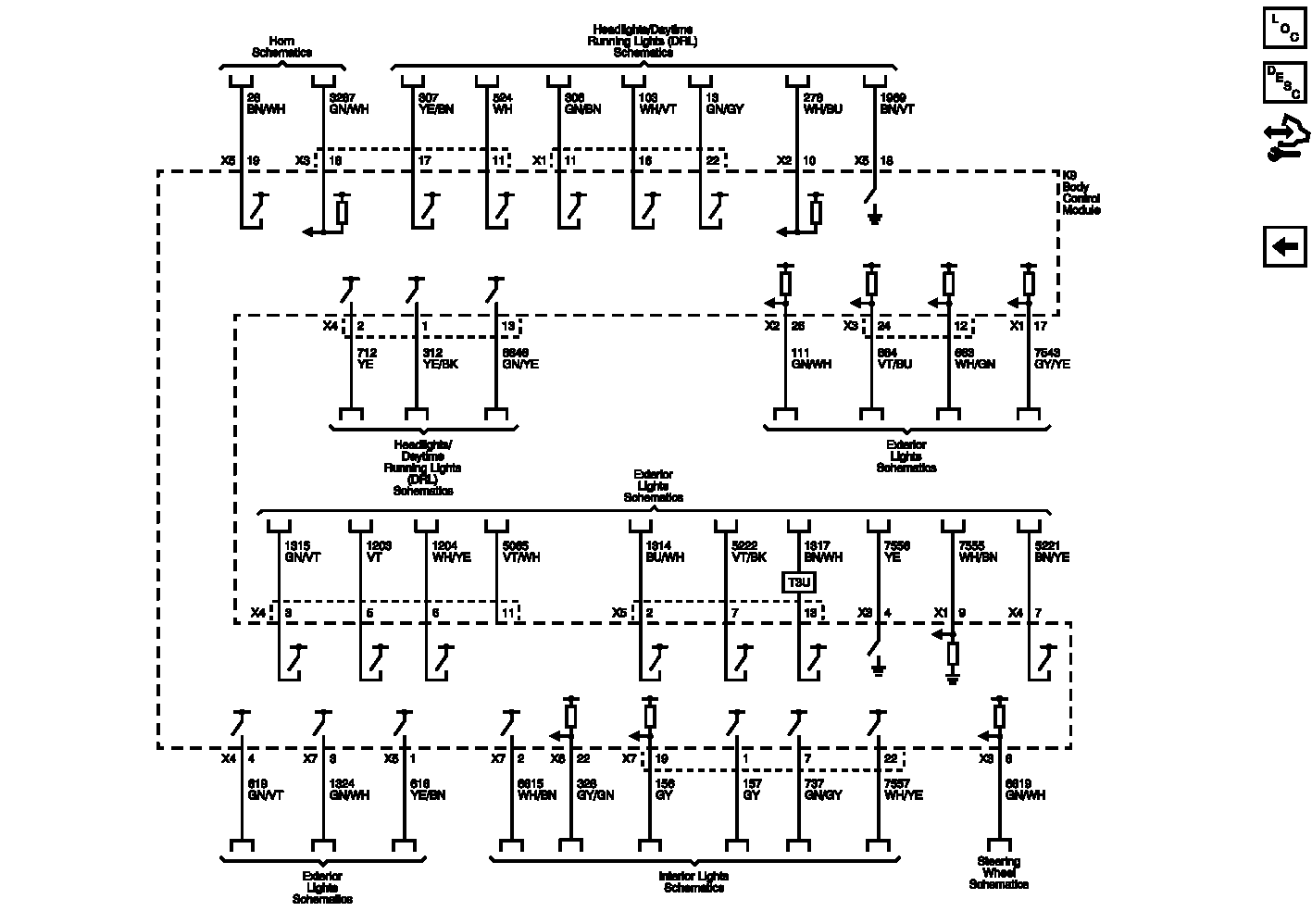

Fig 1: Subsystem References Wiring Schematic (4 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
