Data Communications System Wiring Schematics
›
High Speed Bus 1
High Speed Bus 1

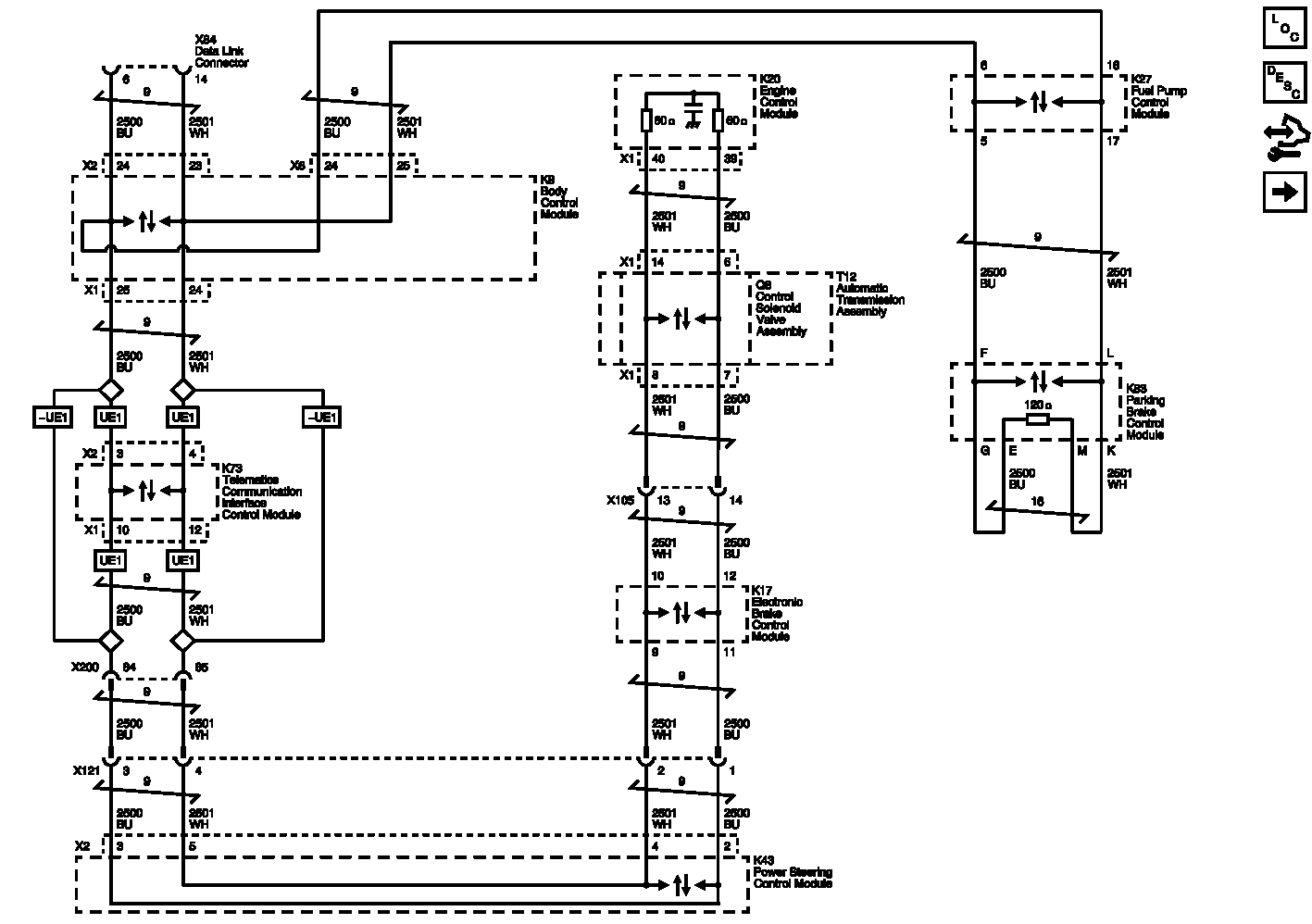

Fig 1: High Speed Bus 1 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
