Brake Fluid Level Indicator Switch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

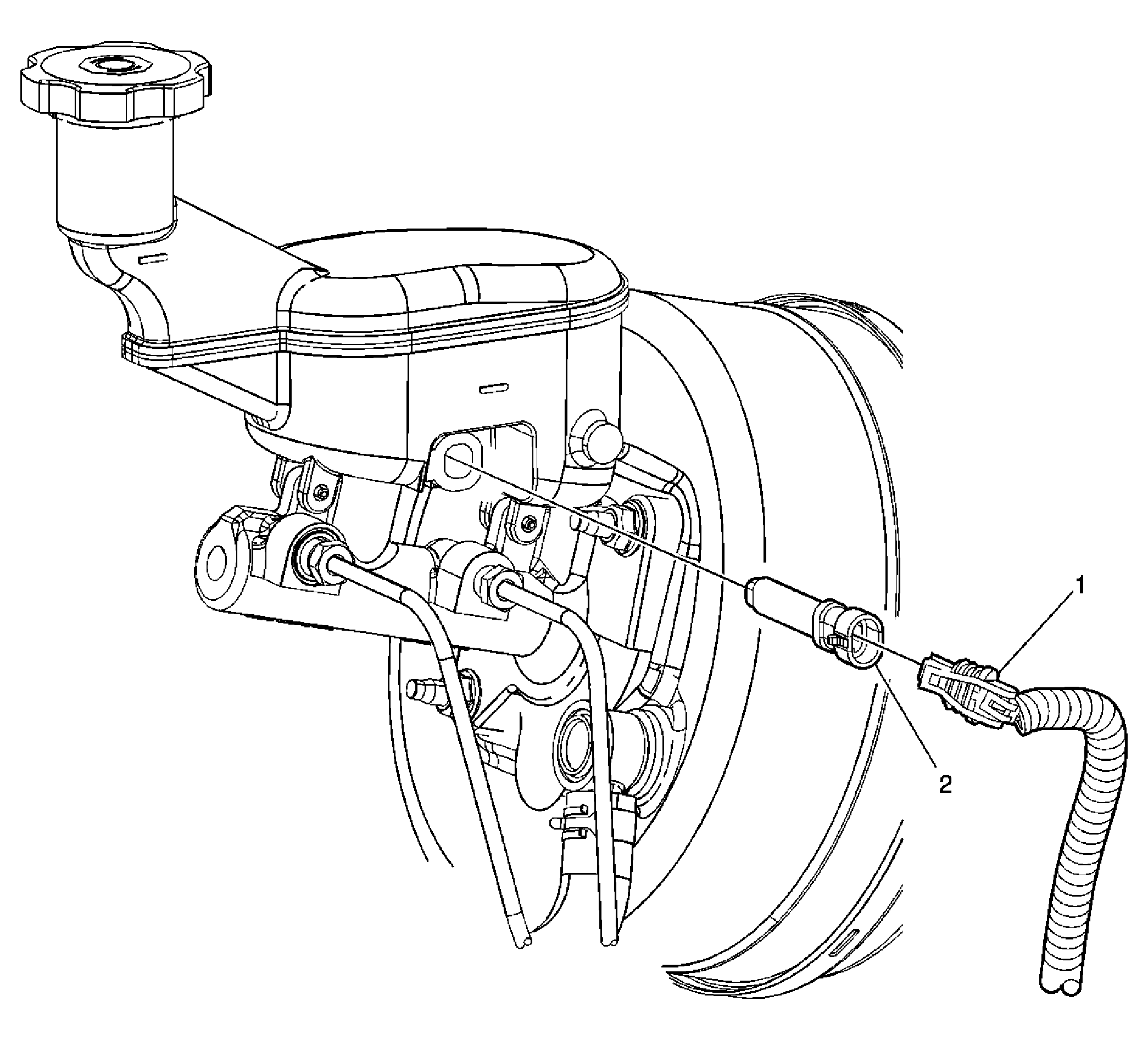

Fig 1: View Of Master Cylinder Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Connector, Brake Fluid Level Indicator Switch
2	Switch, Brake Fluid Level Indicator Tip: Depress the tabs on the indicator switch and remove indicator switch from the reservoir.
