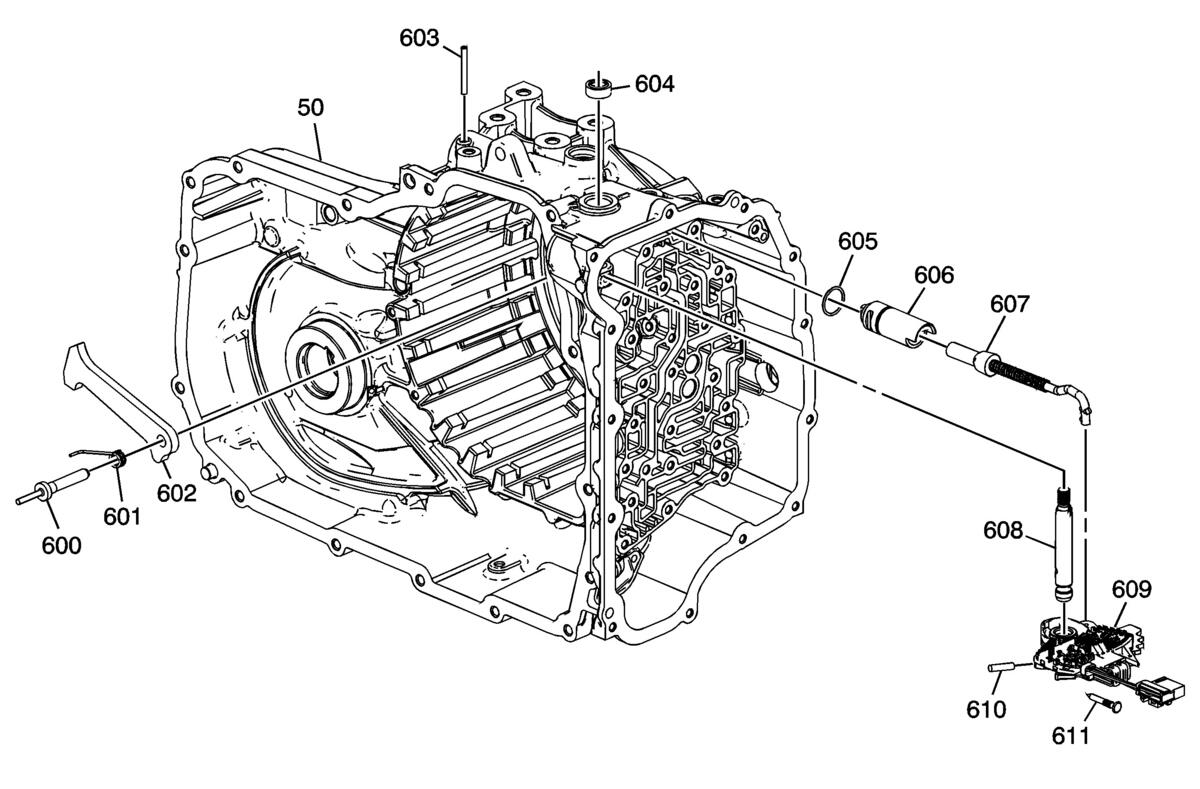

Park System Components
| Callout | Component Name |
|---|---|
| 50 | A/Trans Case |
| 600 | Park Pawl Shaft |
| 601 | Park Pawl Spring |
| 602 | Park Pawl |
| 603 | Park Pawl Actuator Guide Pin |
| 604 | Manual Shift Shaft Seal |
| 605 | Park Pawl Actuator Guide Seal |
| 606 | Park Pawl Actuator Guide |
| 607 | Park Pawl Actuator Assembly |
| 608 | Manual Shift Detent Lever Shaft |
| 609 | Manual Shift Detent (w/Shaft Position Switch) Lever Assembly |
| 610 | Manual Shift Detent Lever Pin |
| 611 | Manual Shift Shaft Pin |
