Stability Control
Stability Control

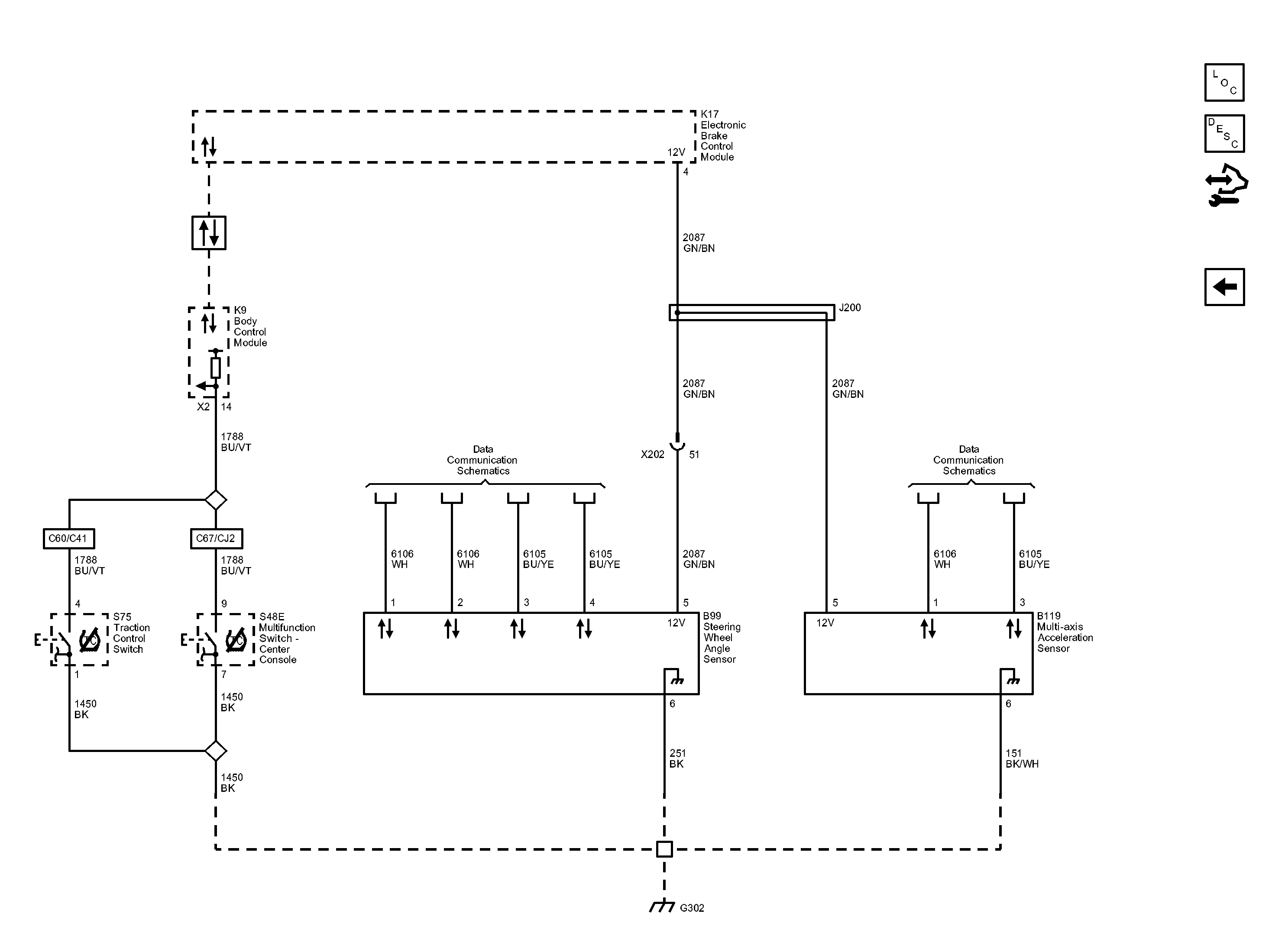

Fig 1: Stability Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
