Starting and Charging Schematics: Starting

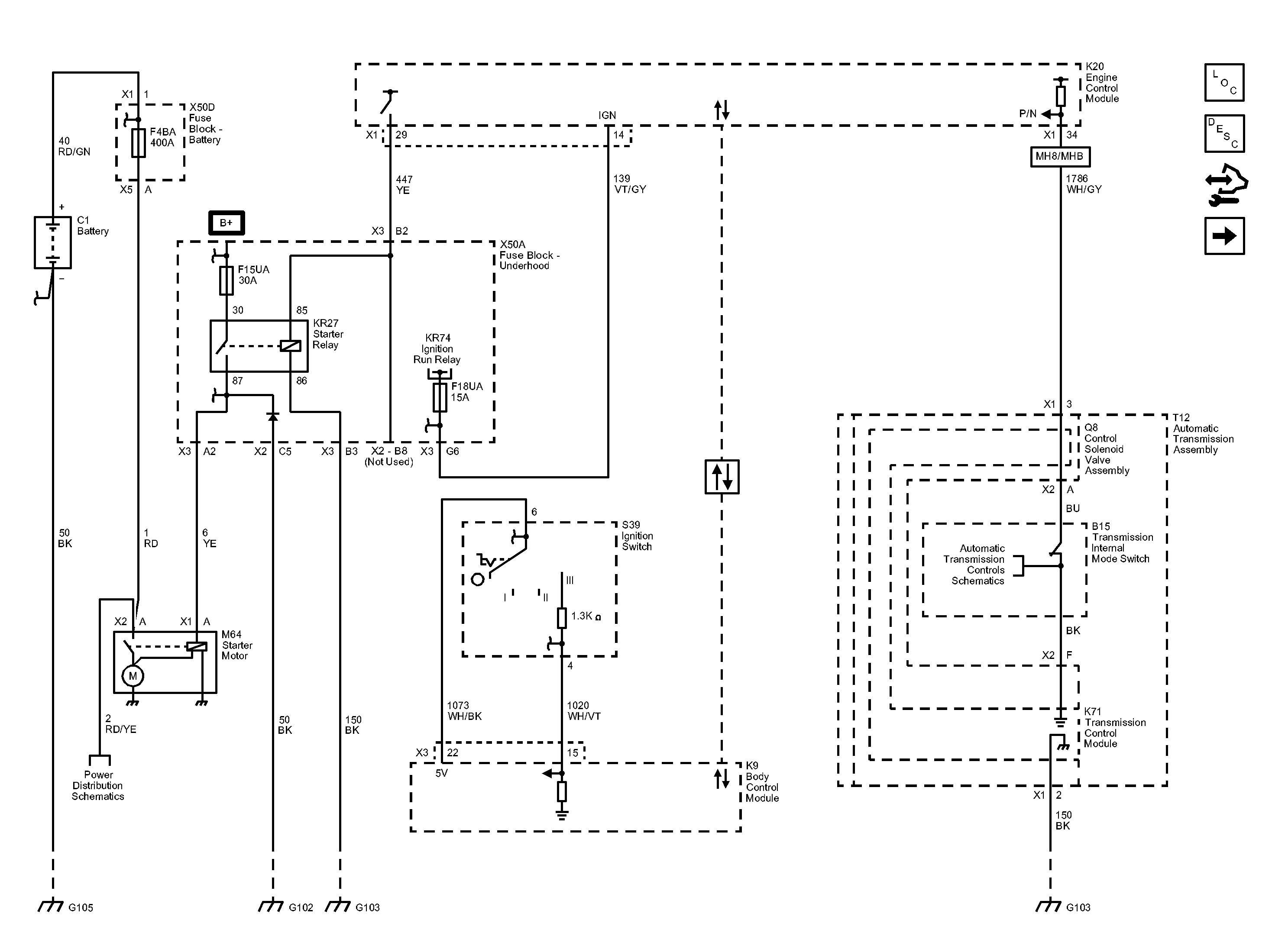

Fig 1: Starting System Wiring Schematic
GM2884948Courtesy of GENERAL MOTORS COMPANY
