Buick
›
2013
›
Encore Base, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic and Routing Diagrams
›
Data Communication Schematics
›
High Speed GMLAN Bus 1 (1 Of 2)
High Speed GMLAN Bus 1 (1 Of 2)

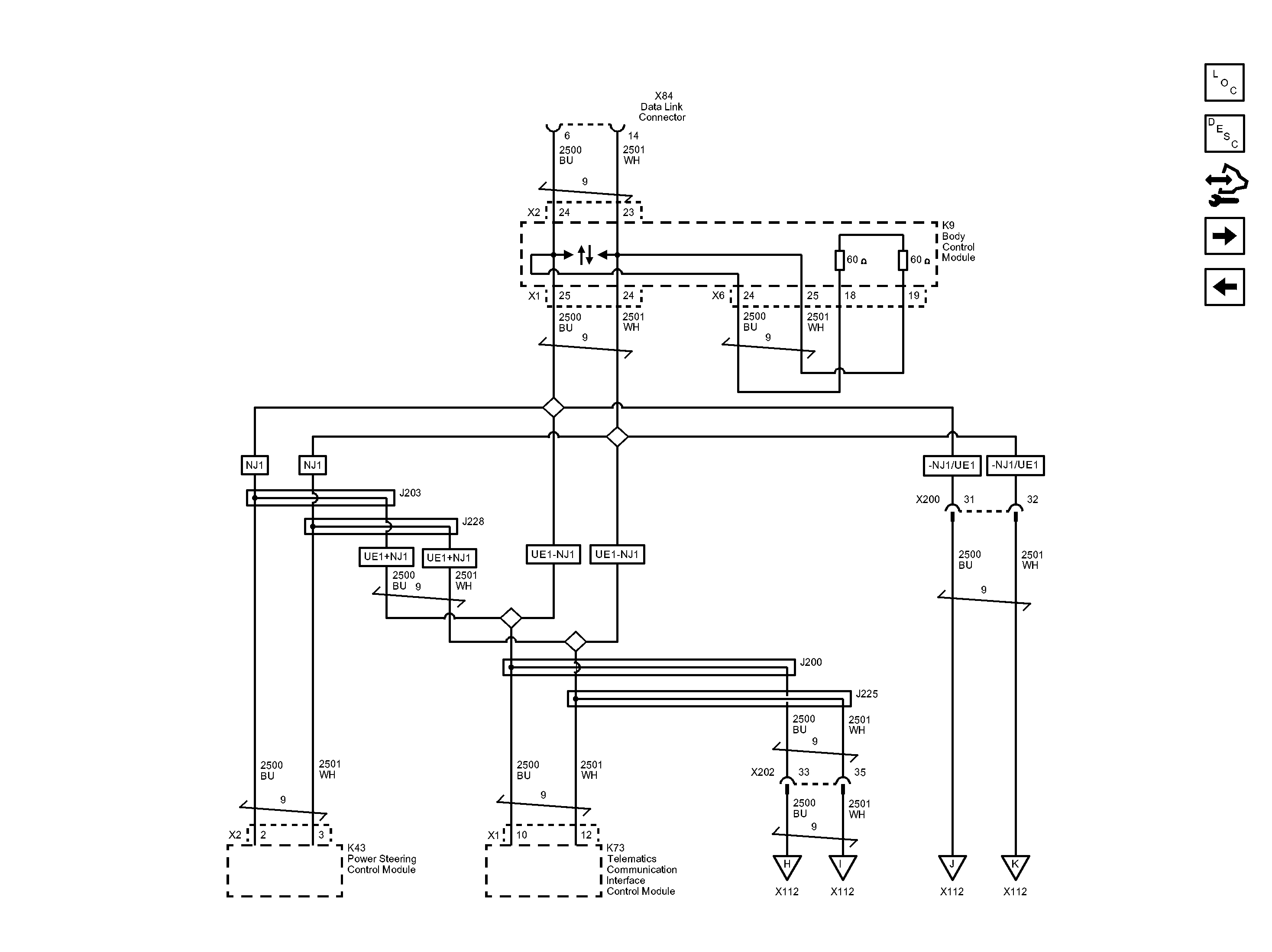

Fig 1: High Speed GMLAN Bus 1 Wiring Schematic (1 Of 2)
