Power, Ground And Low Speed GMLAN
Power, Ground And Low Speed GMLAN

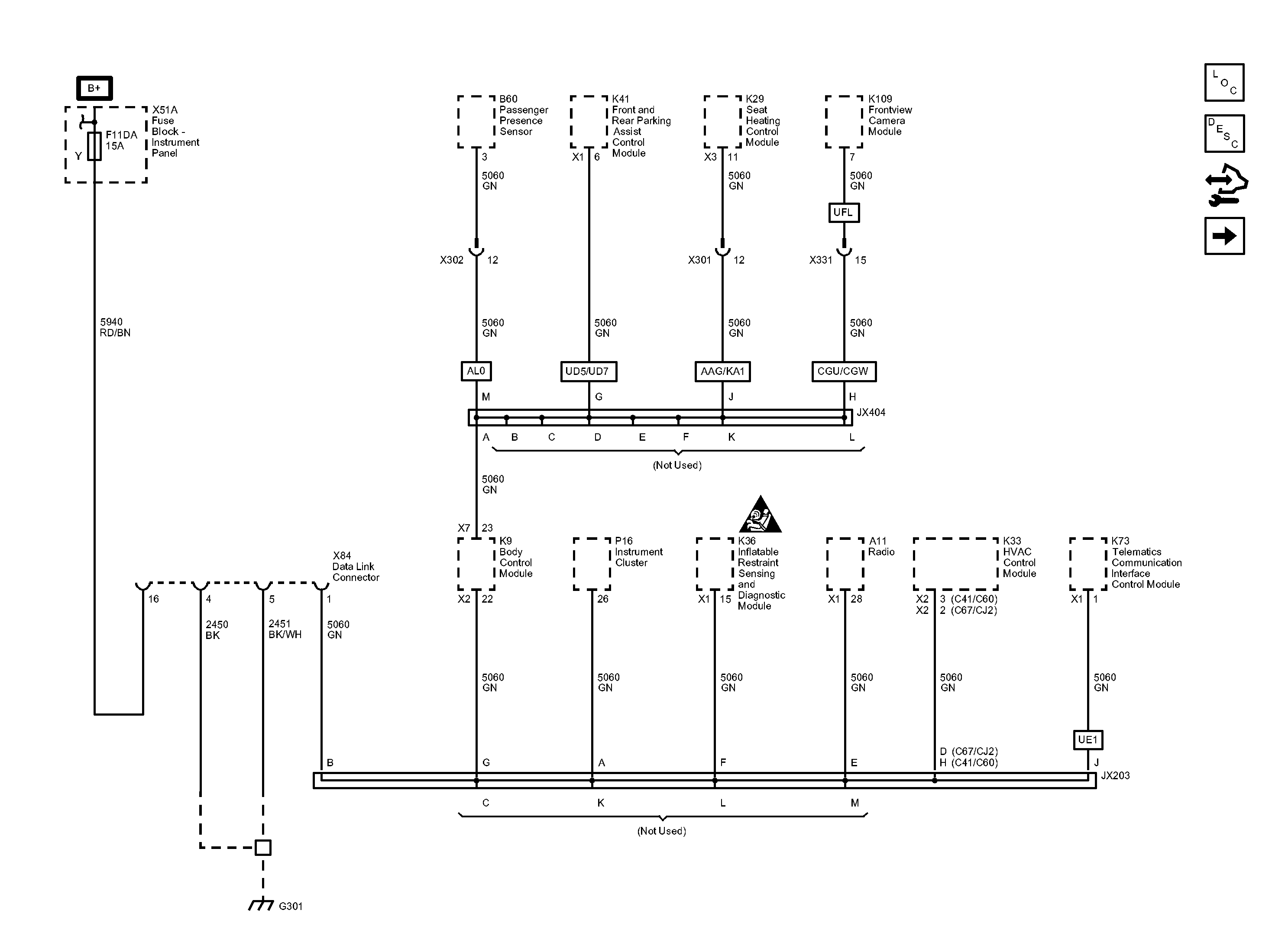

Fig 1: Power, Ground And Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
