Rear Window Wiper Blade Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

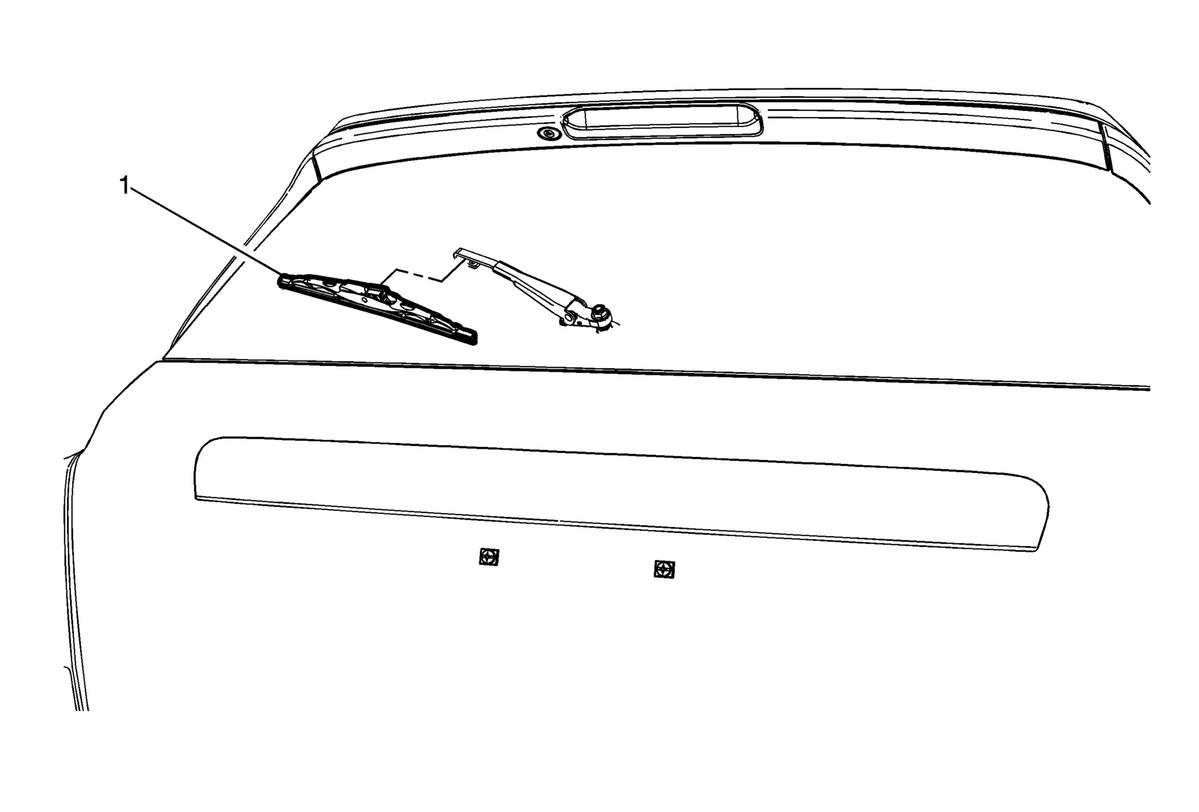

Fig 1: Rear Window Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Window Wiper Blade Assembly Procedure Remove the rear window wiper arm cover. Lift the rear window wiper arm away from the rear liftgate window. Depress the tab under the wiper blade and pull the blade from the wiper arm sheep hook. Rotate slightly the bottom edge of the rear window wiper blade away from the underside of the arm. Remove the rear window wiper blade from the inside radius of the rear window wiper arm. On reinstallation the wiper blade is fully secured to the wiper arm when an audible click noise is heard.

Callout

Component Name

Rear Window Wiper Blade Assembly

Procedure

Remove the rear window wiper arm cover.
Lift the rear window wiper arm away from the rear liftgate window.
Depress the tab under the wiper blade and pull the blade from the wiper arm sheep hook.
Rotate slightly the bottom edge of the rear window wiper blade away from the underside of the arm.
Remove the rear window wiper blade from the inside radius of the rear window wiper arm.
On reinstallation the wiper blade is fully secured to the wiper arm when an audible click noise is heard.
