Blower Motor Control Module Replacement (With C67)
Blower Motor Control Module Replacement (With C67)

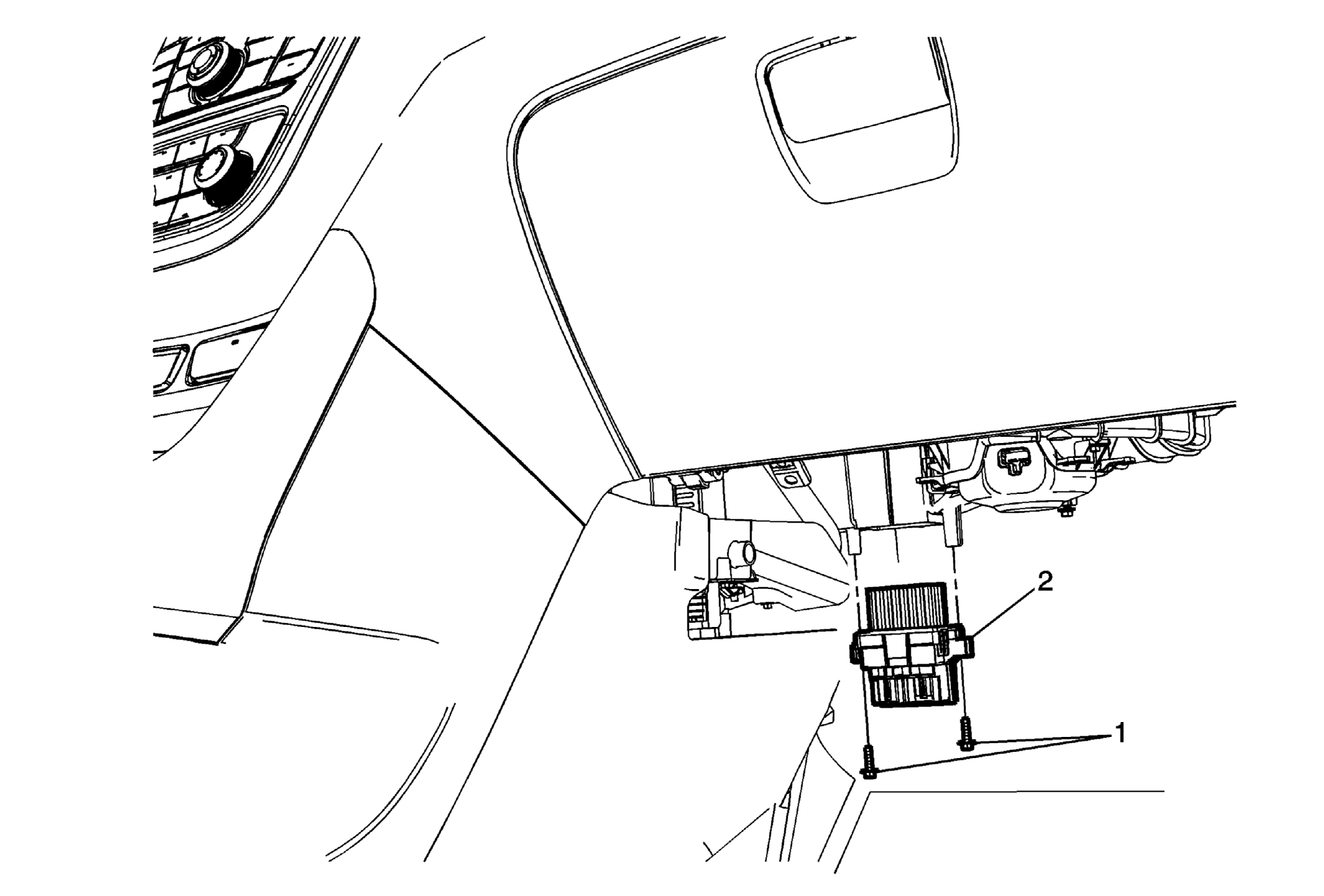

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement . |
|
| 1 | Blower Motor Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Blower Motor Control Module Procedure Disconnect the blower motor control module connector. |
