Rear Seat Center Belt Replacement
Rear Seat Center Belt Replacement

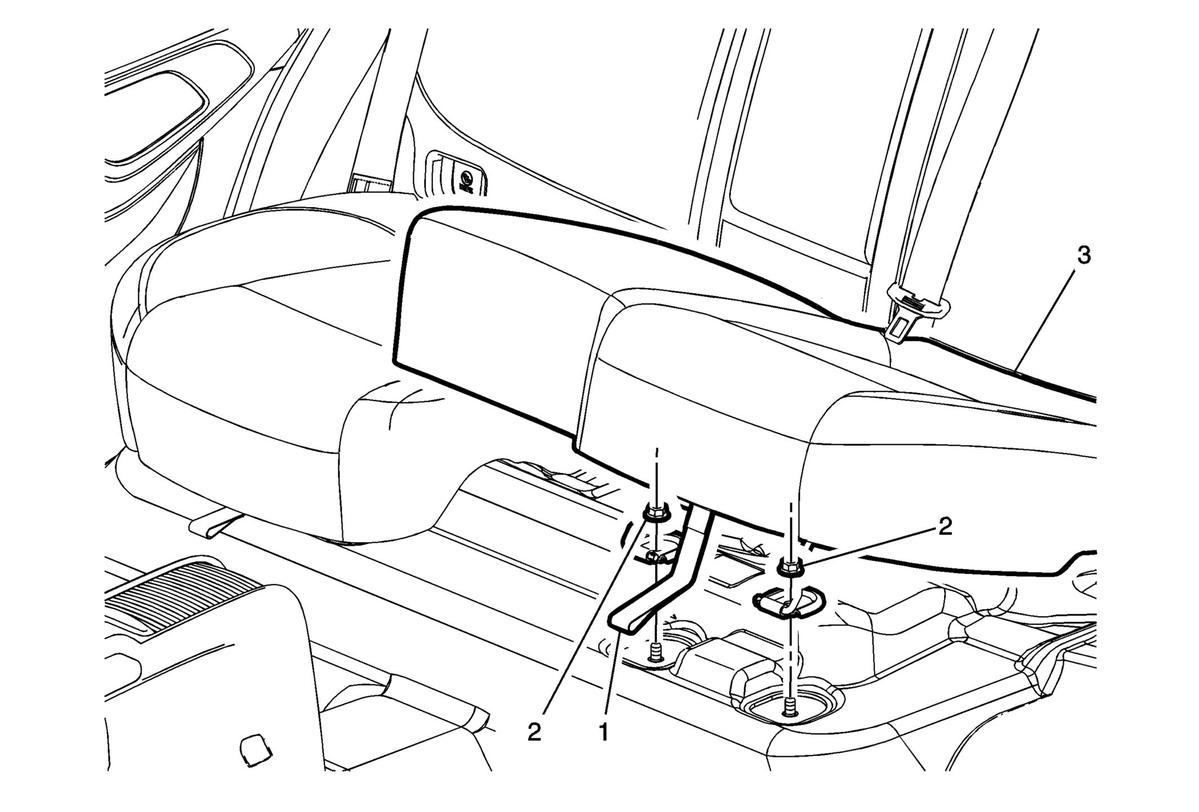

| Callout | Component Name |
|---|---|
| Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . |
|
| 1 | Rear Seat Center Belt Nut
CAUTION:
Refer to Fastener Caution . Procedure Pull on the lower release straps to disengage the seat cushion so it can be folded into the up position to gain access to the nut. Tighten 40 (30 lb ft) |
| 2 | Rear Seat Center Belt Assembly Procedure Disconnect the electrical. |
