Power Steering Schematics: NJ1

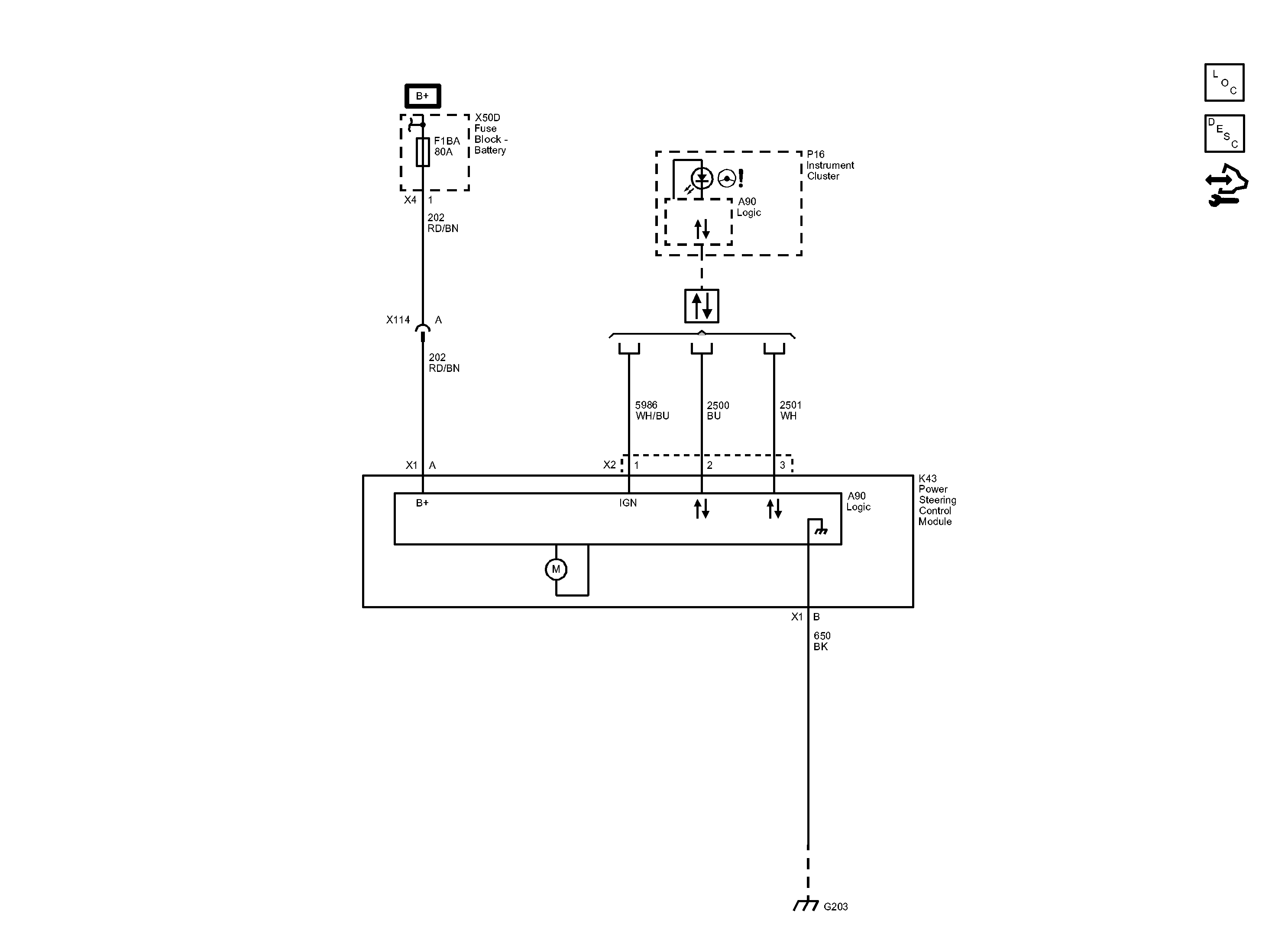

Fig 1: Power Steering (NJ1) Wiring Schematic
GM2873803Courtesy of GENERAL MOTORS COMPANY
