Rear Seat Belt Buckle Replacement
Rear Seat Belt Buckle Replacement

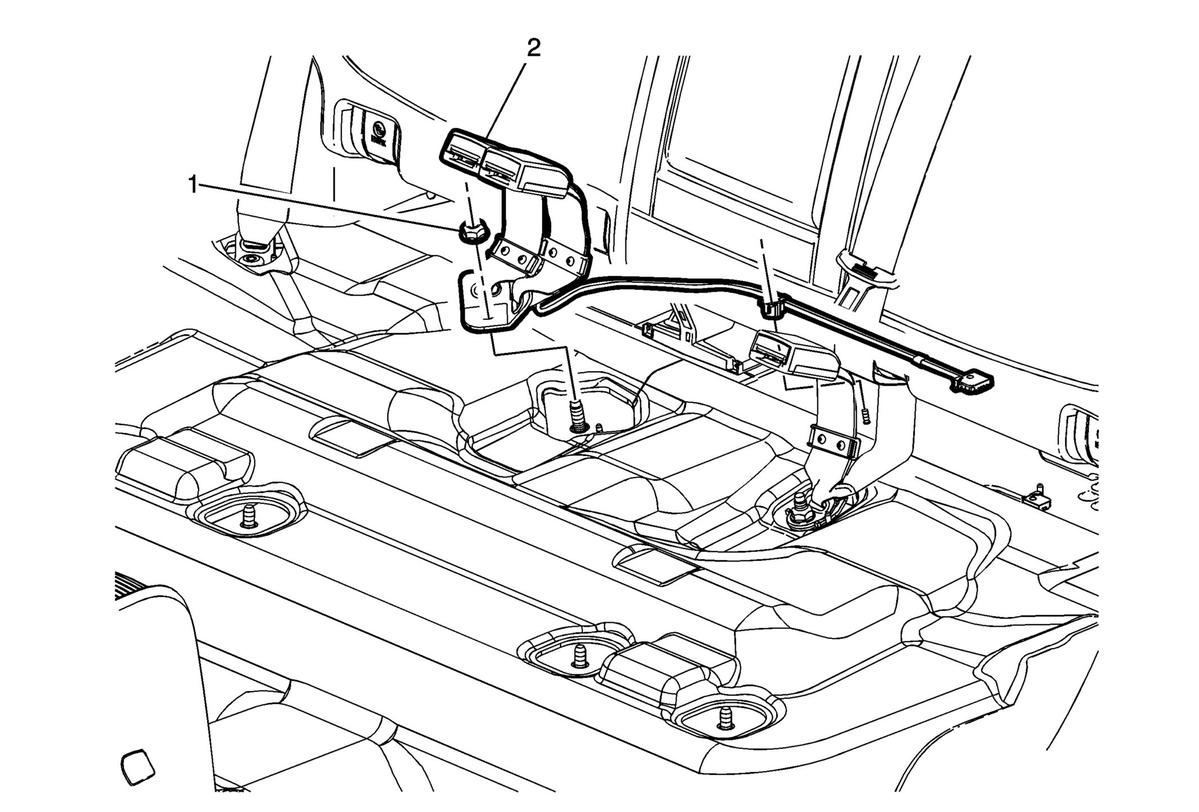

| Callout | Component Name |
|---|---|
|
WARNING:
Procedure Disable the SIR system. Refer to SIR Disabling and Enabling
.Refer to SIR Warning . |
|
| 1 | Rear Seat Belt Buckle Nut
CAUTION:
Refer to Fastener Caution . Procedure Pull on the lower release straps to disengage the seat cushion so it can be folded into the up position to gain access to the nut. Tighten 45 (33 lb ft) |
| 2 | Rear Seat Belt Buckle Assembly Procedure Disconnect the electrical. |
