Module Power, Ground, Serial Data And Memory Controls (AAG)

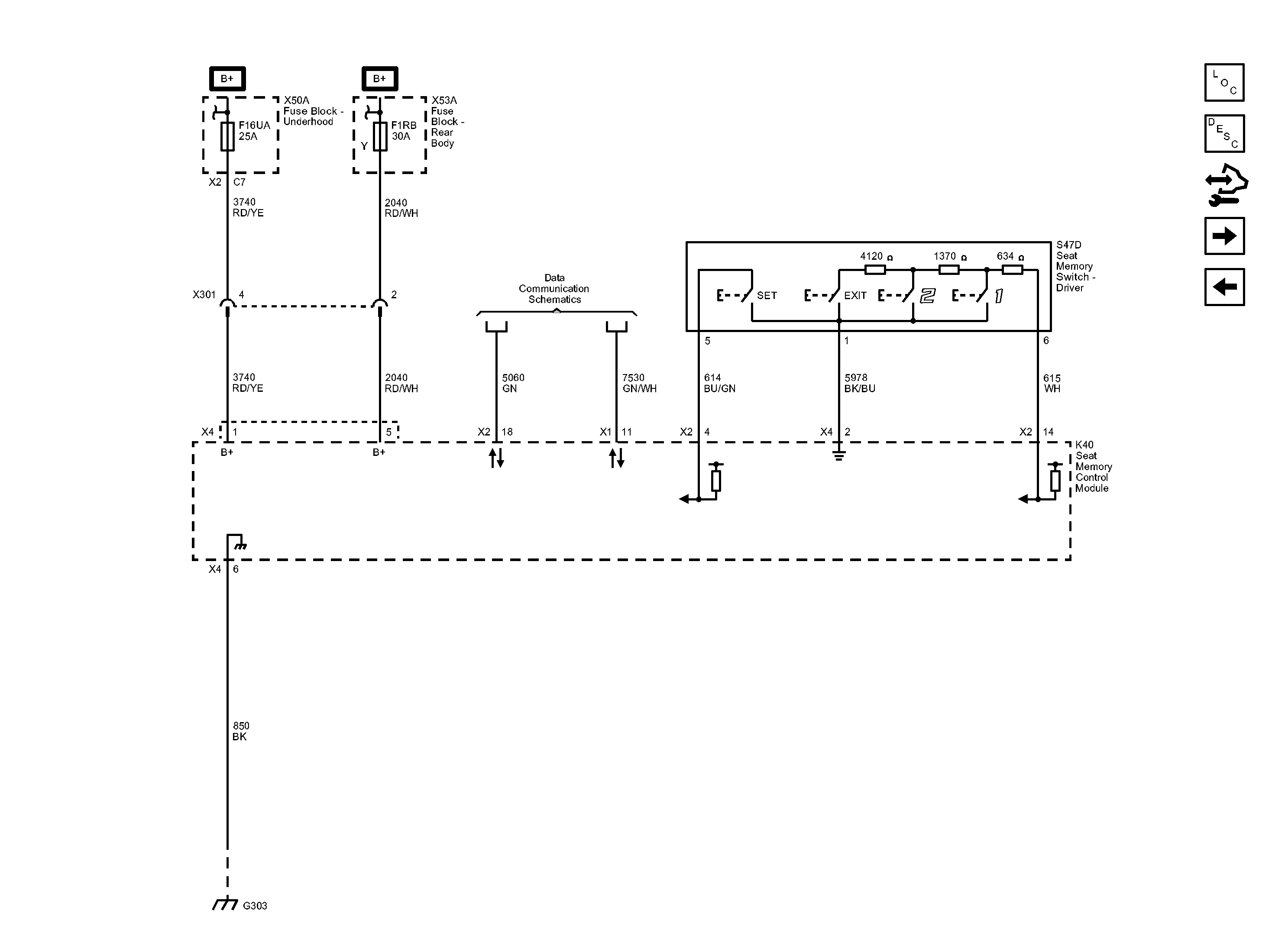

Fig 1: Module Power, Ground, Serial Data And Memory Controls (AAG) Wiring Schematic
GM2891148Courtesy of GENERAL MOTORS COMPANY
