Module Power, Ground, Data Communication And Controls

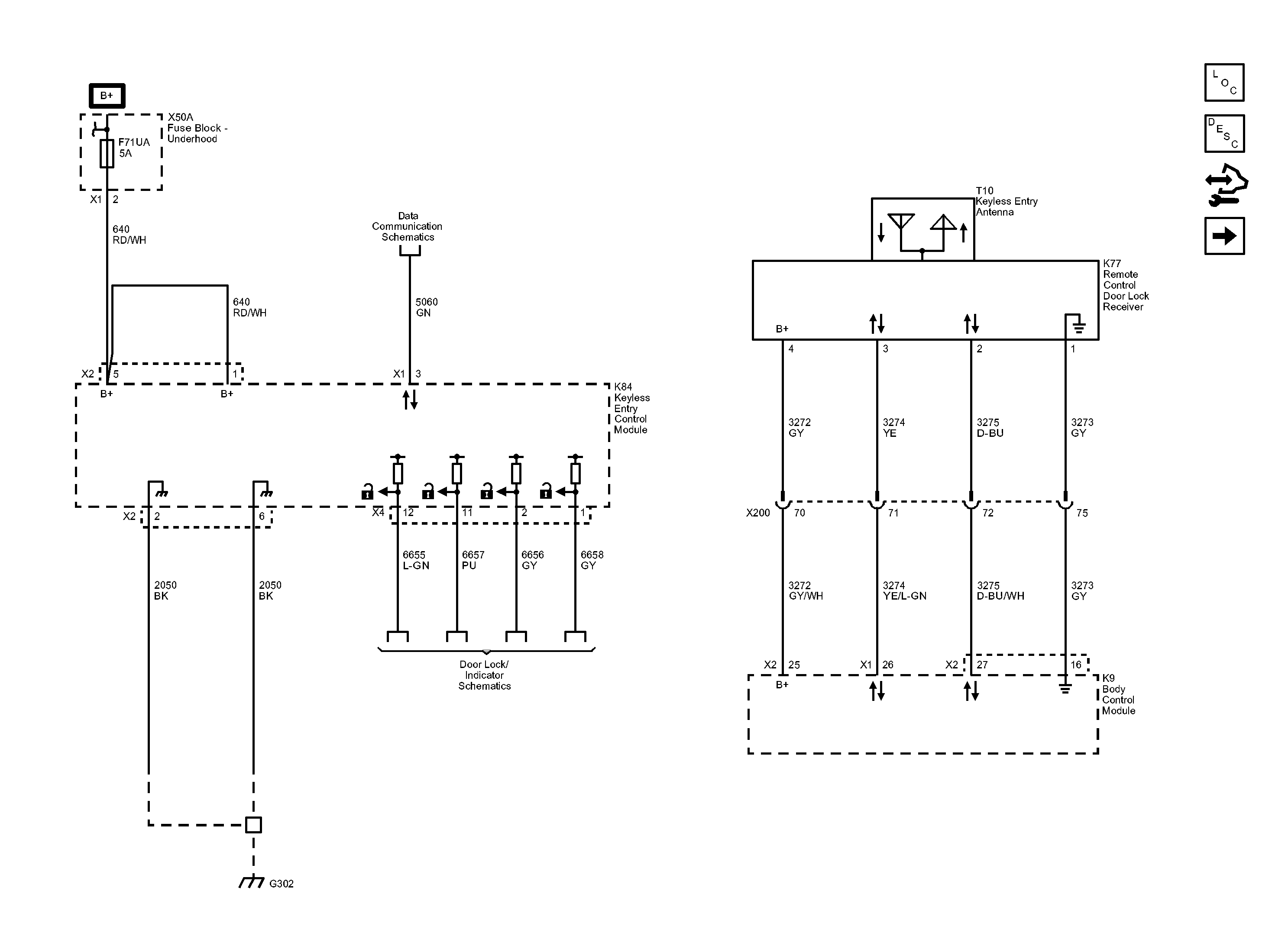

Fig 1: Module Power, Ground, Data Communication, And Controls Wiring Schematic
GM2809376Courtesy of GENERAL MOTORS COMPANY
