Antilock Brake System Schematics
›
Module Power, Ground, and Subsystem References
Module Power, Ground, and Subsystem References

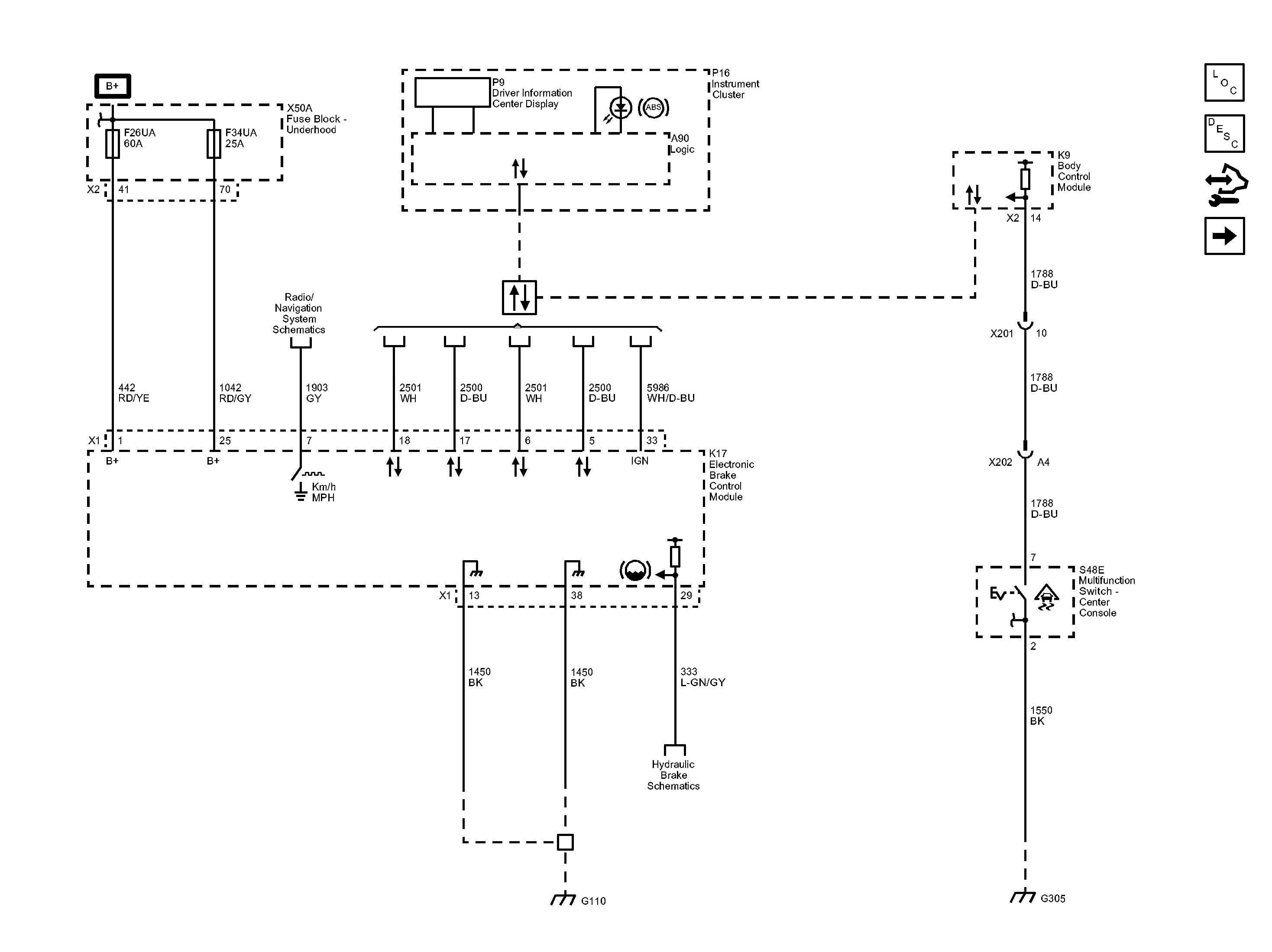

Fig 1: Module Power, Ground, and Subsystem References Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
