Communications Enable (CZ2)
Communications Enable (CZ2)

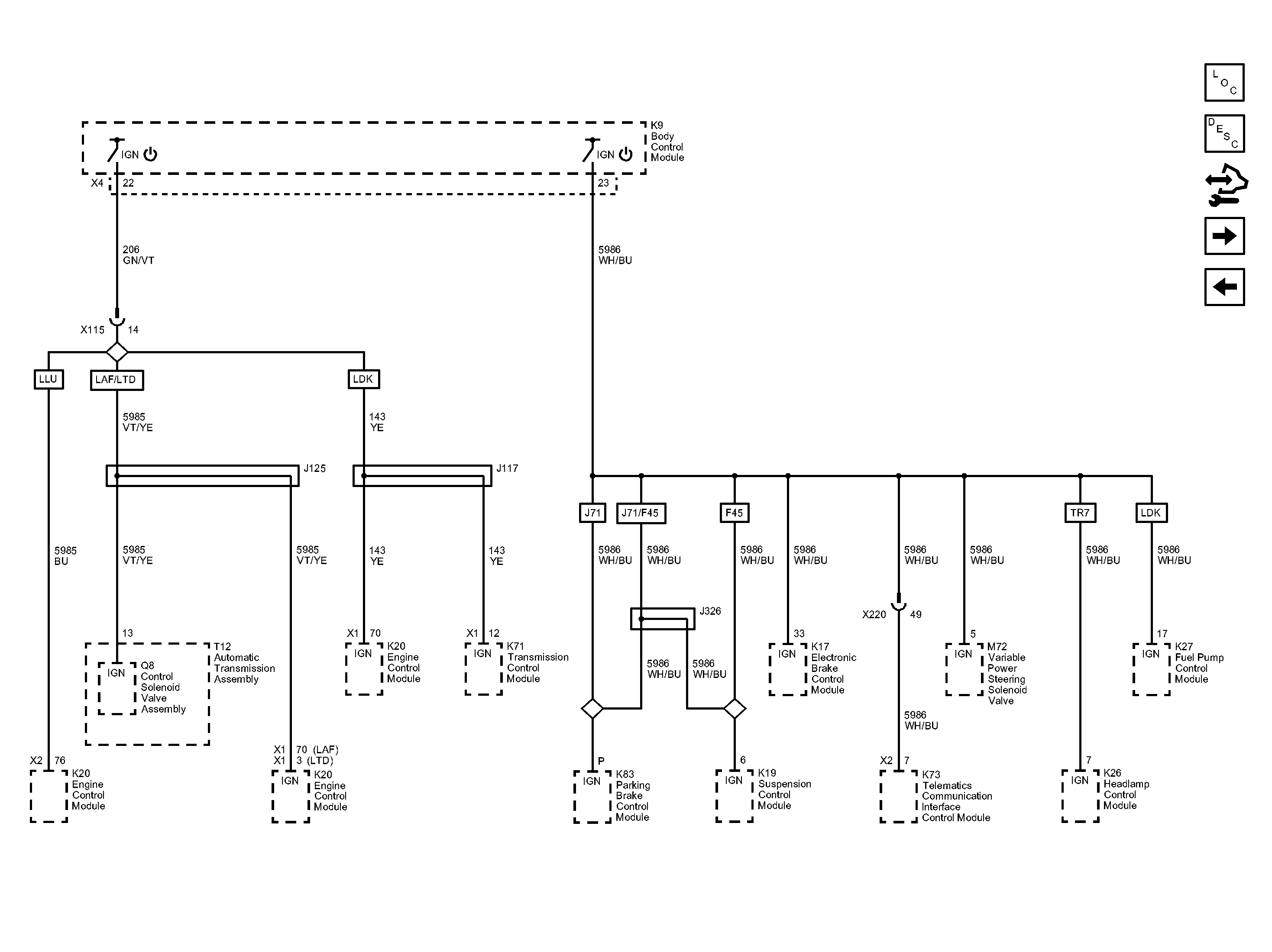

Fig 1: Communications Enable Wiring Schematic (CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
