Data Communication Wiring Schematics
›
Communications Enable (except CZ2)
Communications Enable (except CZ2)

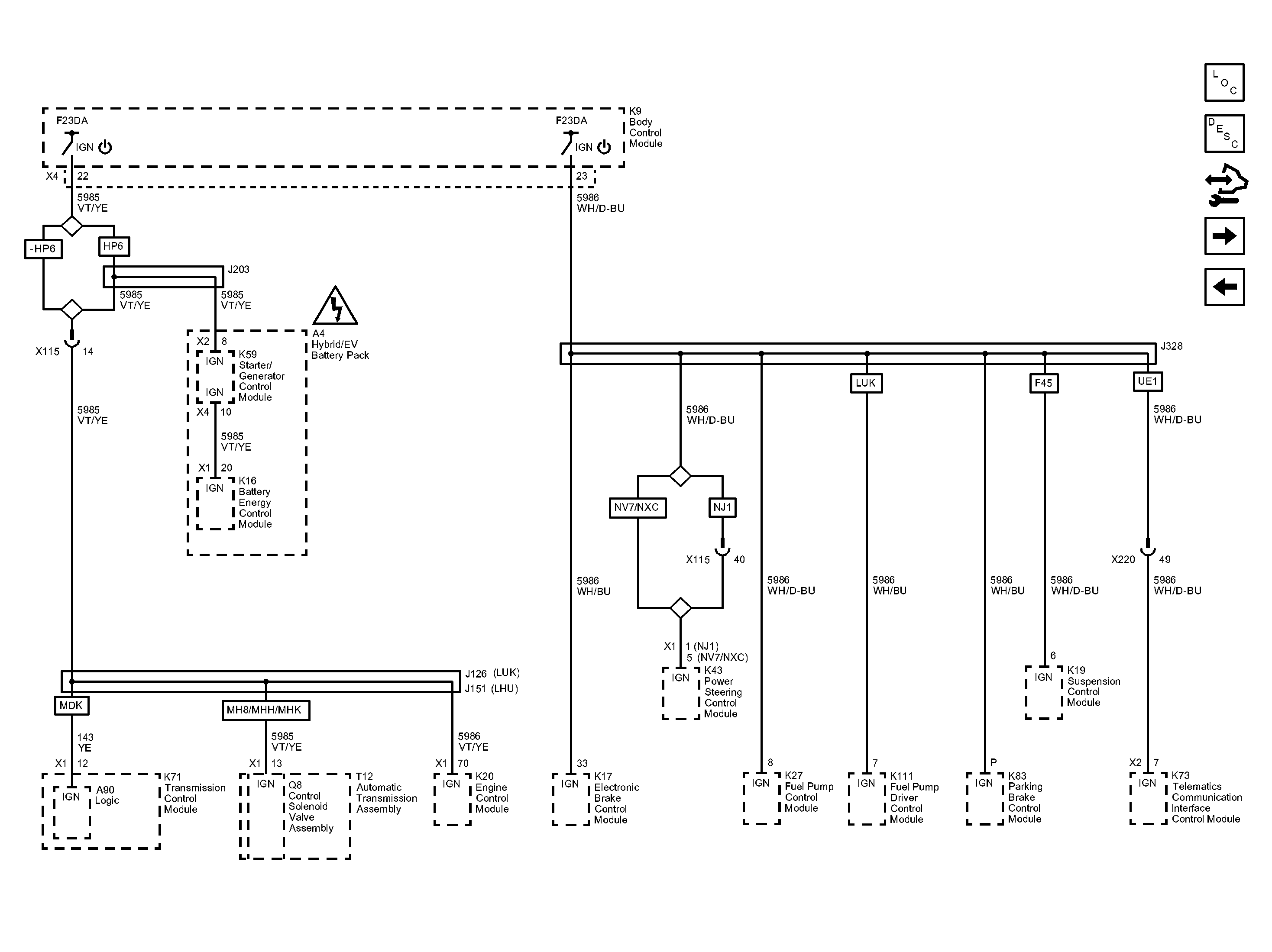

Fig 1: Communications Enable Wiring Schematic (except CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
