Regal GS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
High Speed GMLAN CE Bus
High Speed GMLAN CE Bus

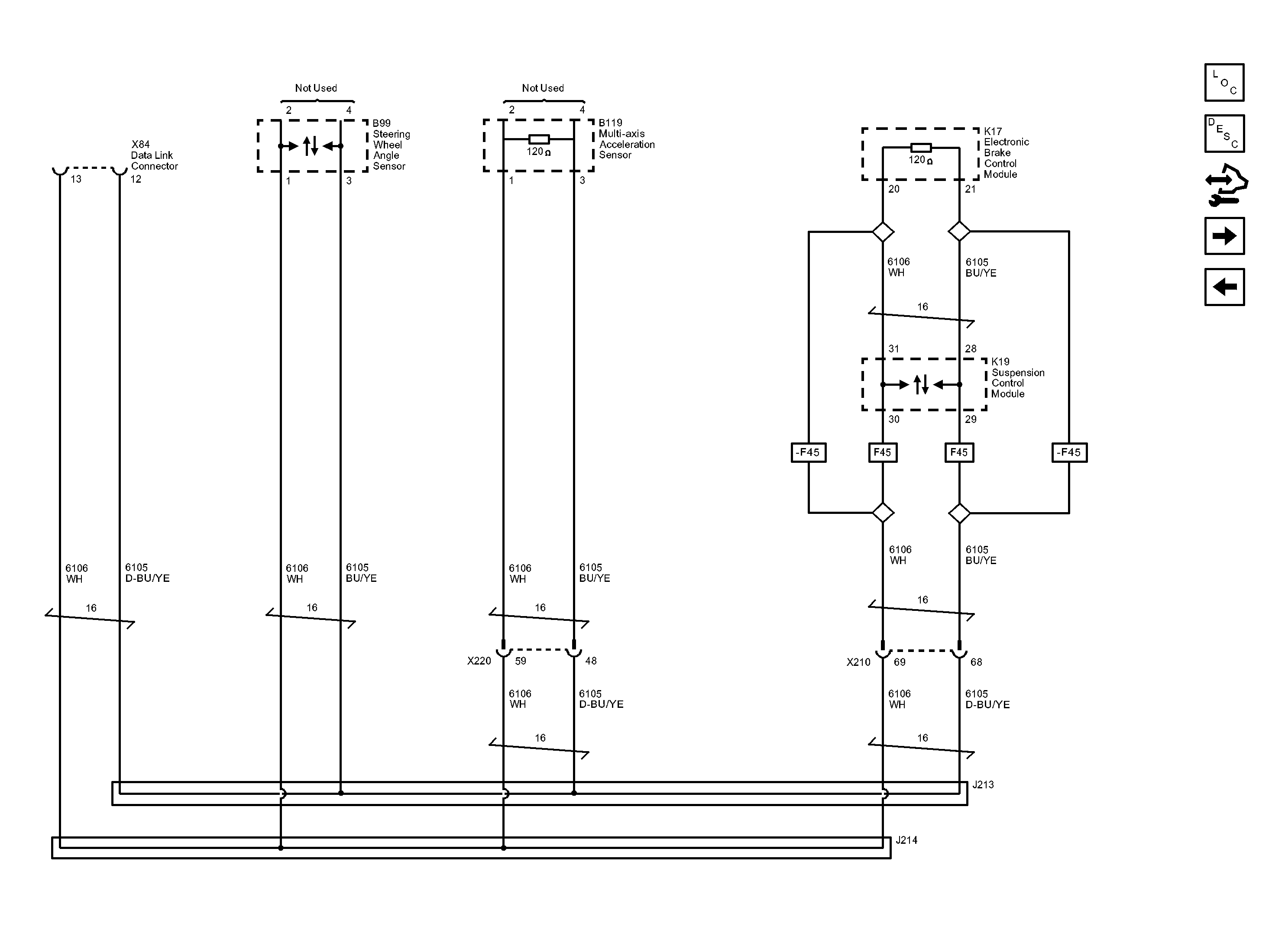

Fig 1: High Speed GMLAN CE Bus Wiring Schematic
