Audio/Video Disc Player Adapter Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

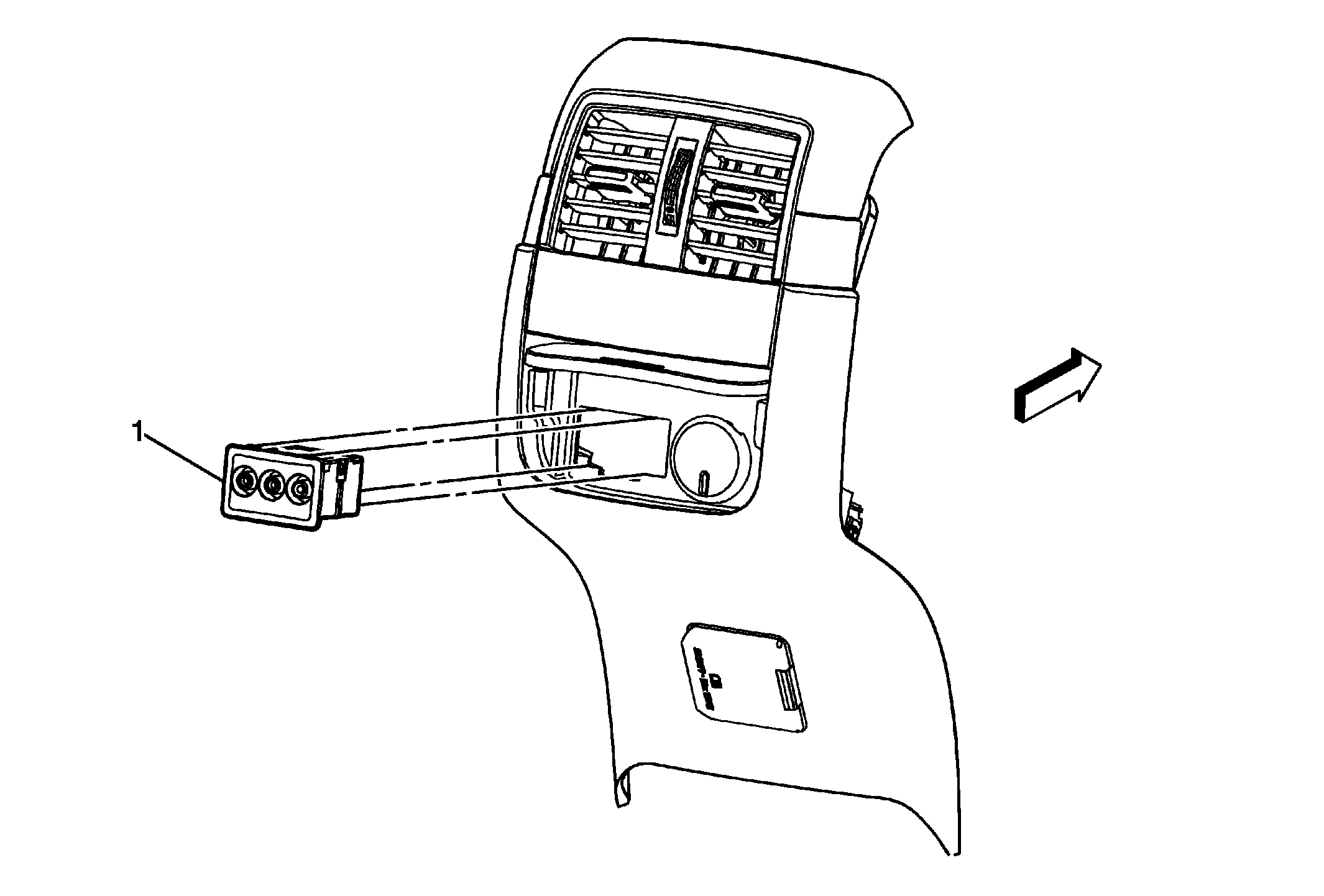

Fig 1: Audio/Video Disc Player Adapter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
1	Audio/Video Disc Player Adapter Assembly Procedure Depress the four tabs and remove the adapter from the rear cover.
