Radio Antenna Module Replacement
WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
Radio Antenna Module Replacement

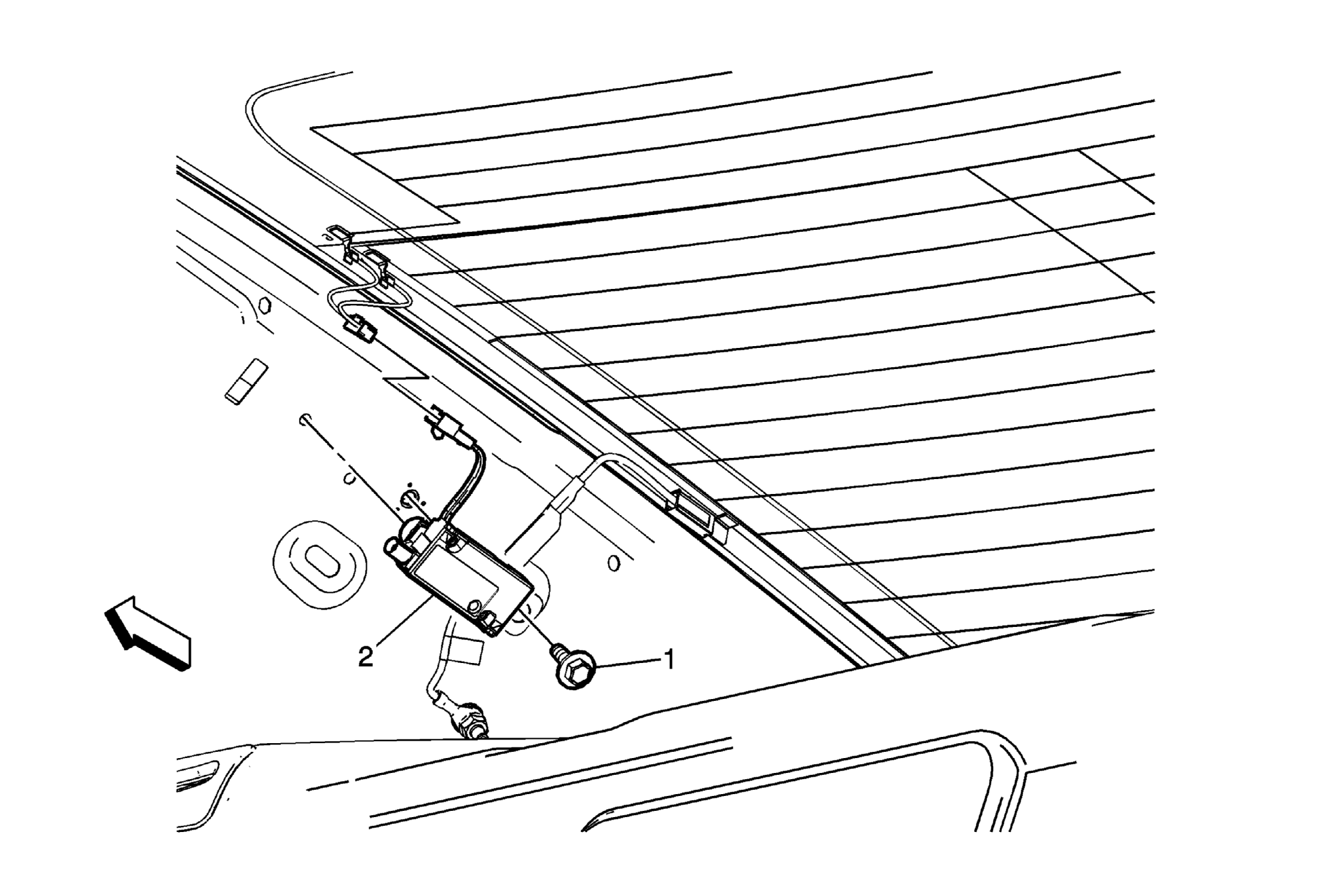

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement . |
|
| 1 | Radio Antenna Module Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Module |
