Steering Wheel Secondary/Configurable Controls

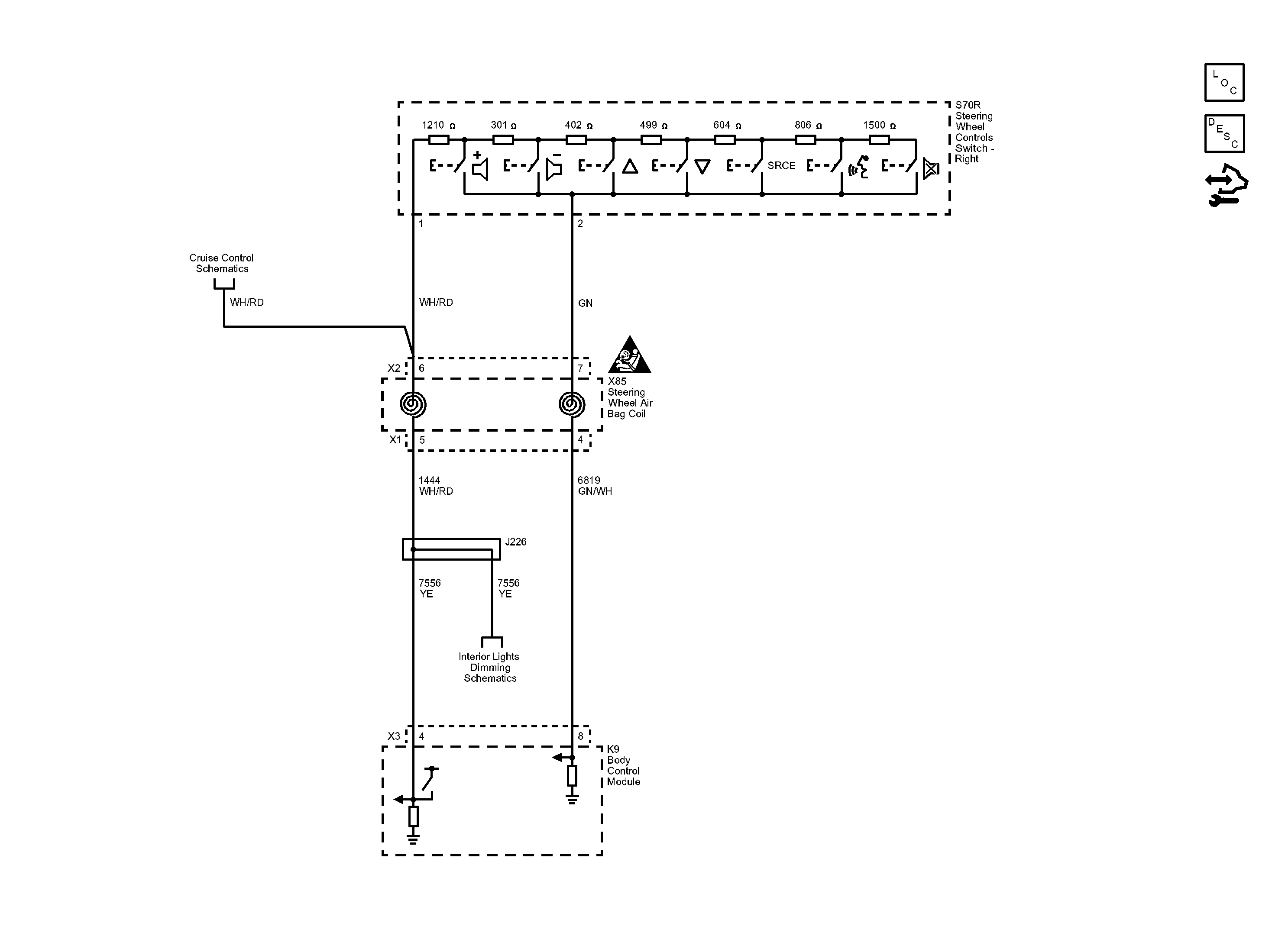

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
GM2852444Courtesy of GENERAL MOTORS COMPANY
