Defogger Wiring Schematics: Defogger

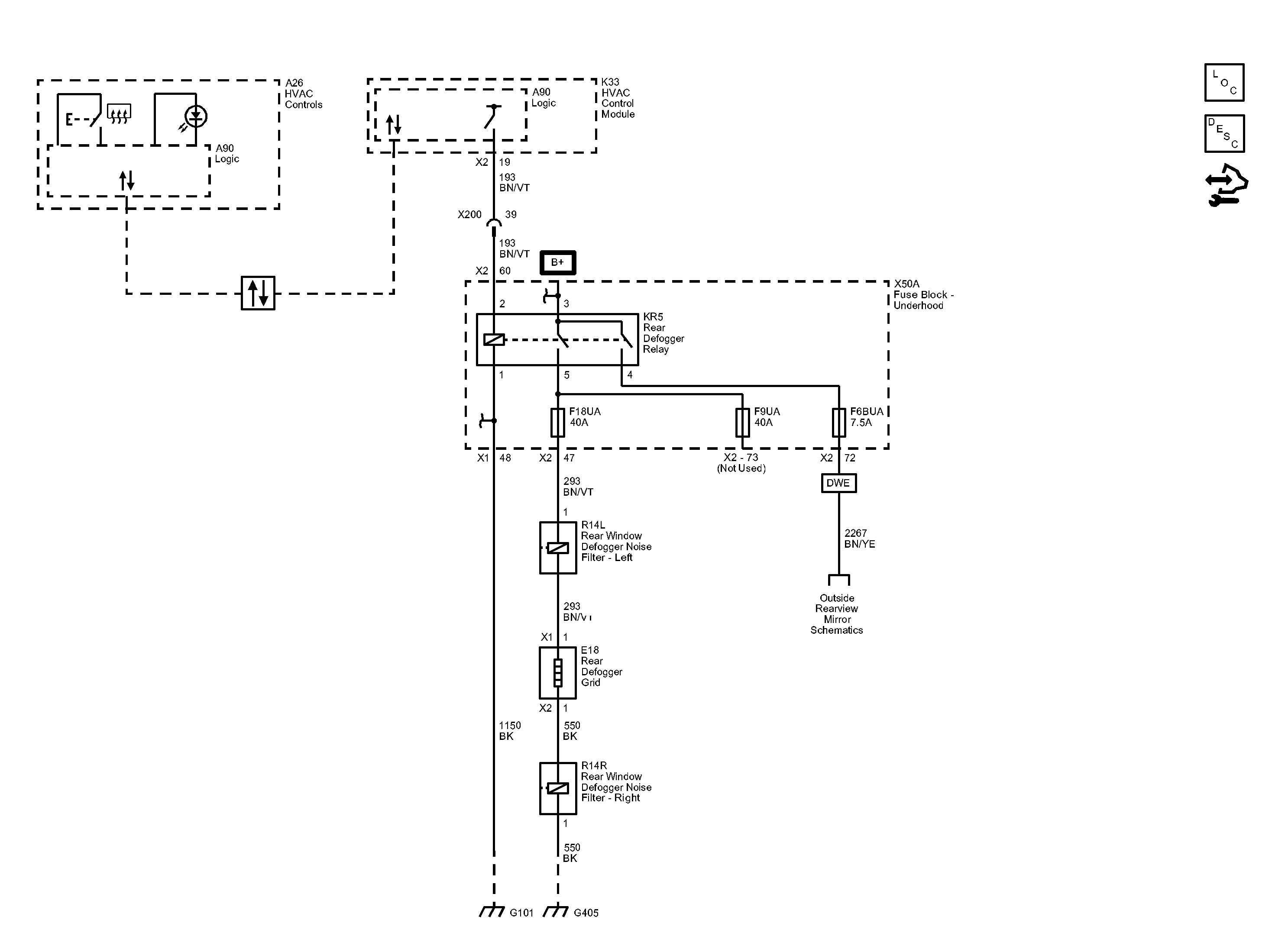

Fig 1: Defogger Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
