Moveable Window Wiring Schematics: Driver

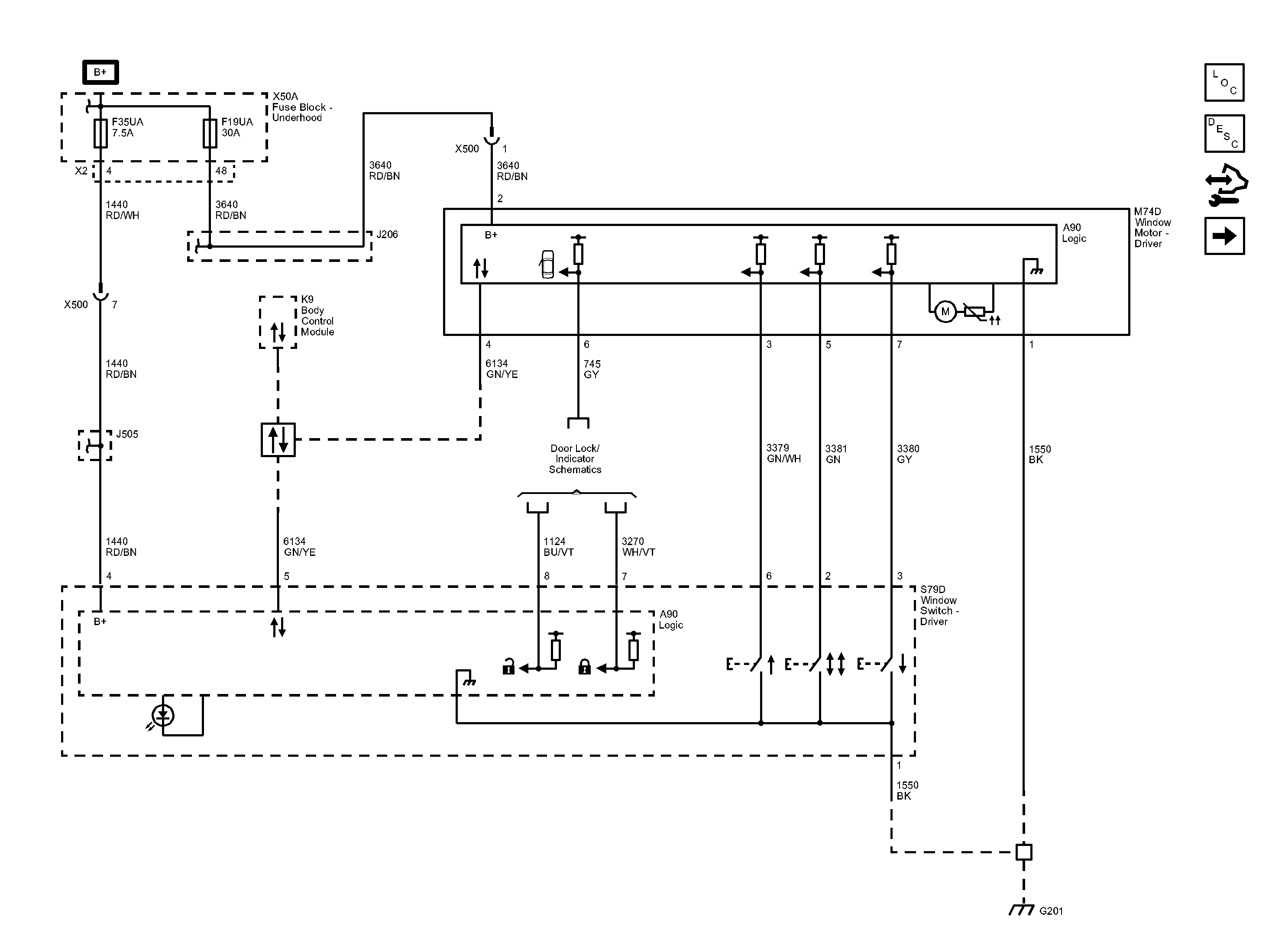

Fig 1: Moveable Window Wiring Schematic - Driver
GM2851785Courtesy of GENERAL MOTORS COMPANY
