Rear Windows
Rear Windows

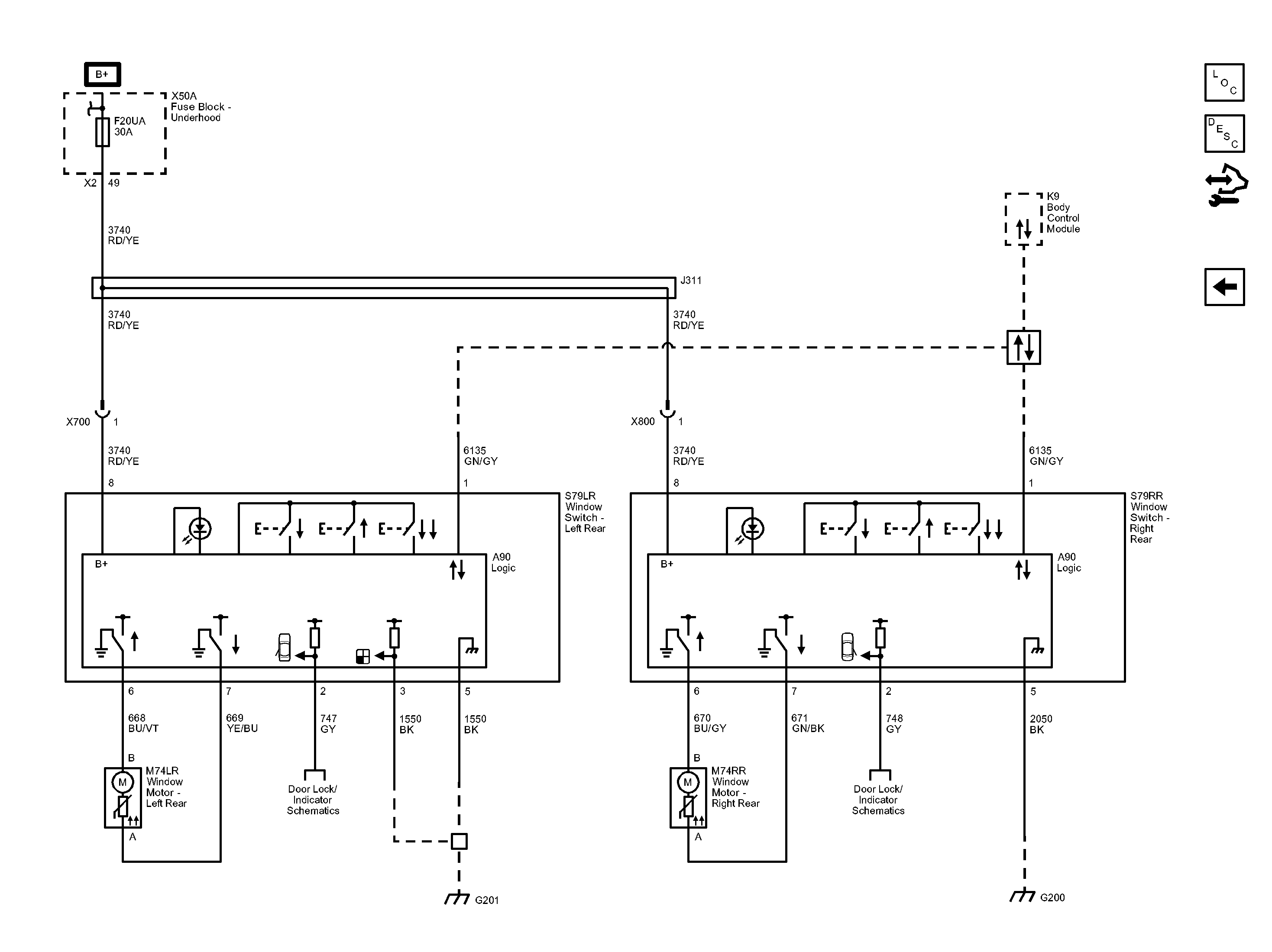

Fig 1: Moveable Window Wiring Schematic - Rear Windows
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
