Instrument Cluster Replacement

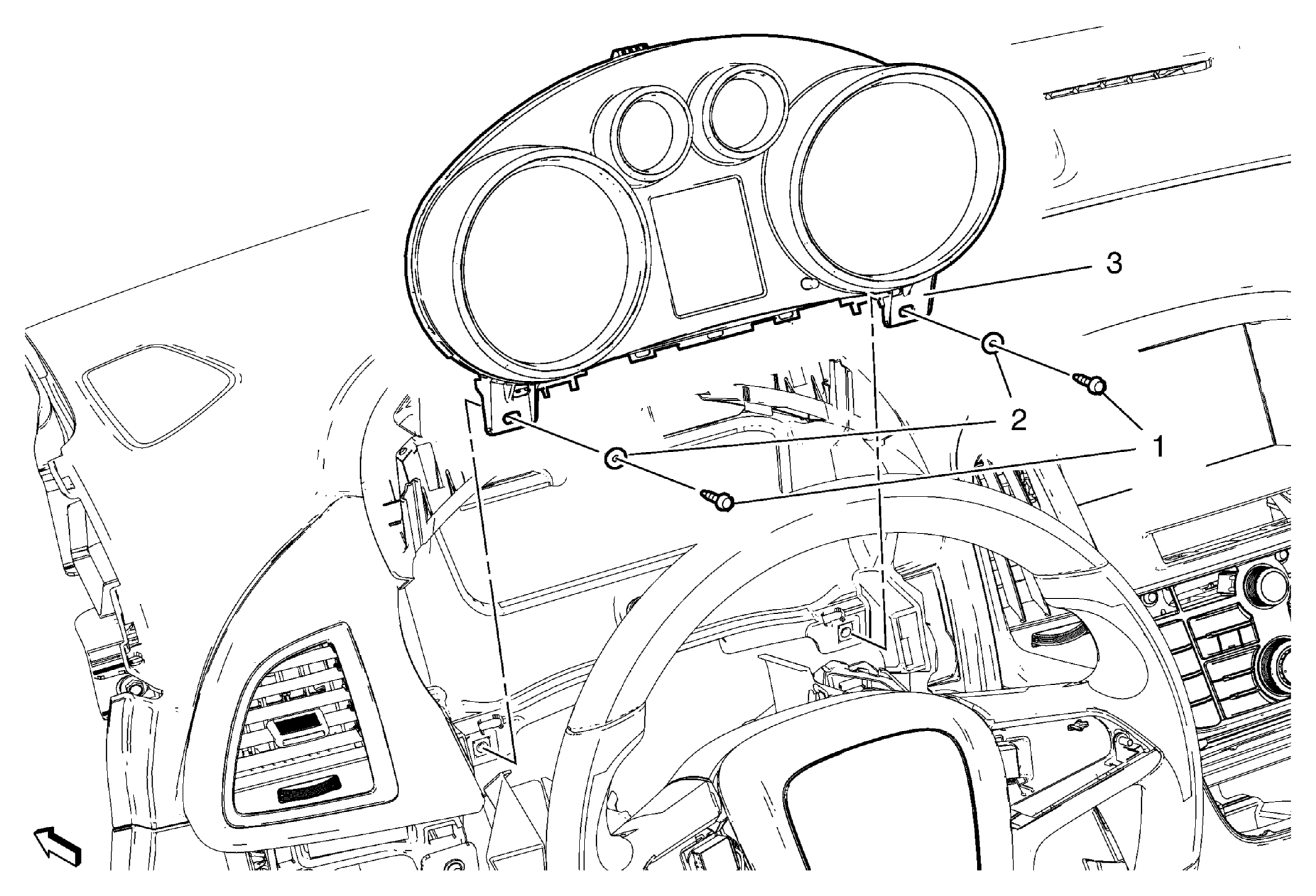

Fig 1: Instrument Cluster
GM2189592Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name

Preliminary Procedures

  1. Prepare instrument cluster for replacement, refer to Control Module References .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove headlamp switch molding. Refer to Headlamp Switch Molding Replacement
  4. Remove instrument panel steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement
  5. Remove instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement
1 Instrument Cluster Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .

2 Instrument Cluster Washer (Qty: 2)
3 Instrument Cluster

Procedure

  1. Disconnect electrical components.
  2. After repairs, refer to Control Module References for programming and set up information.
